Trailer Towing: Notes

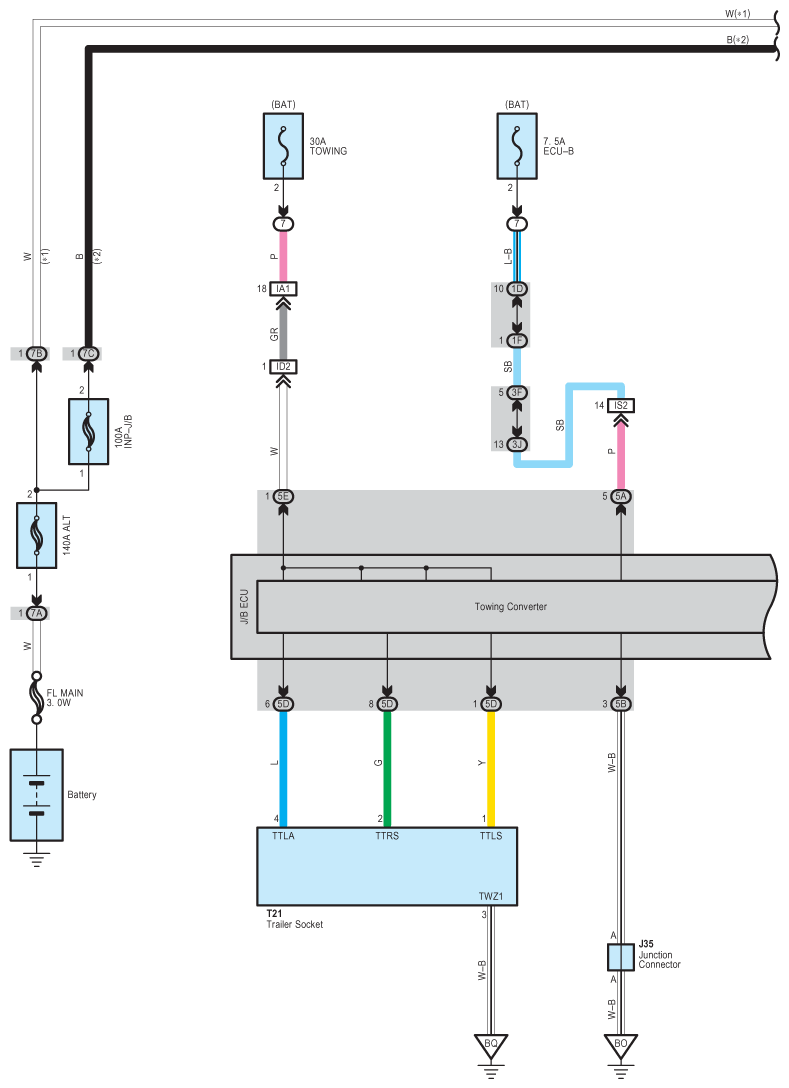

Fig 1: Trailer Towing - Wiring Diagram (1 Of 3)
G08922072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

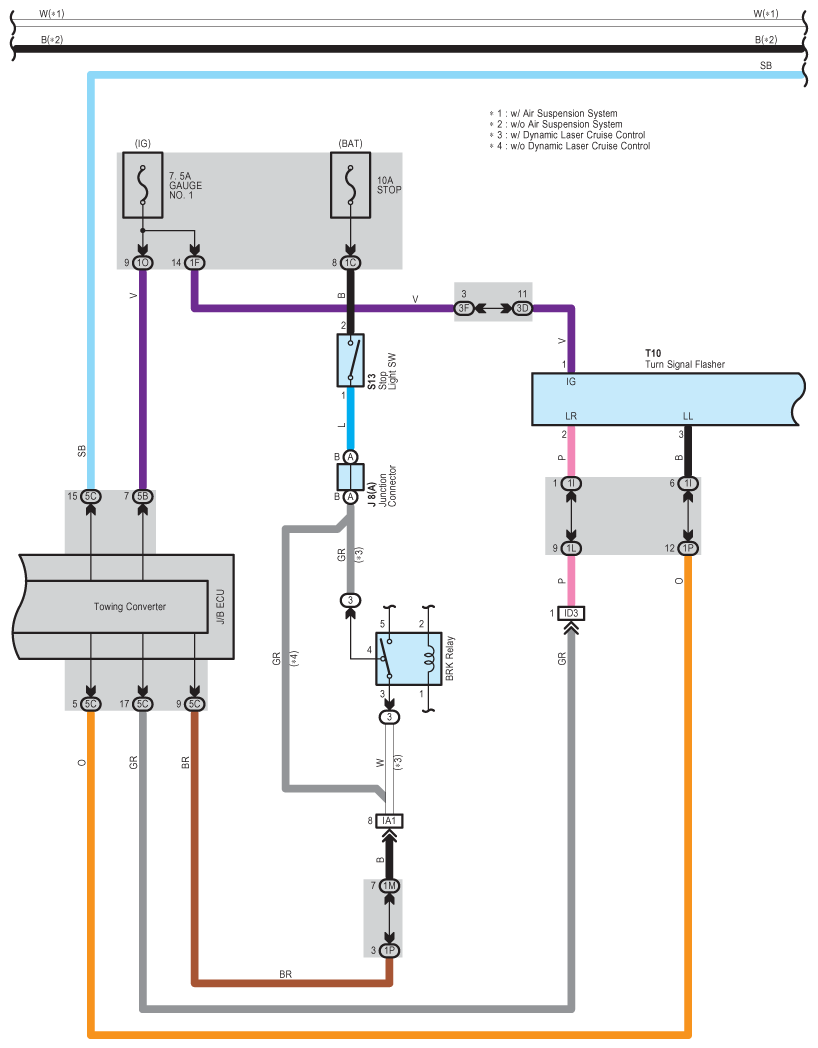

Fig 2: Trailer Towing - Wiring Diagram (2 Of 3)
G08922073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Trailer Towing - Wiring Diagram (3 Of 3)
G08922074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
