Yaw Rate And Acceleration Sensor: Components

Fig 1: Identifying Yaw Rate Sensor Components (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

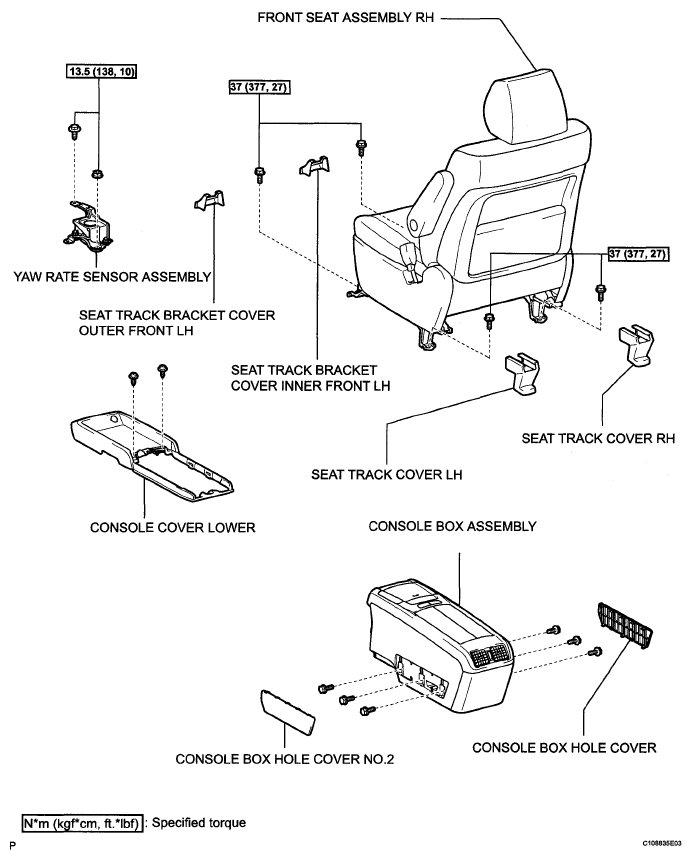

Fig 2: Yaw Rate Sensor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
