Key Reminder: Notes

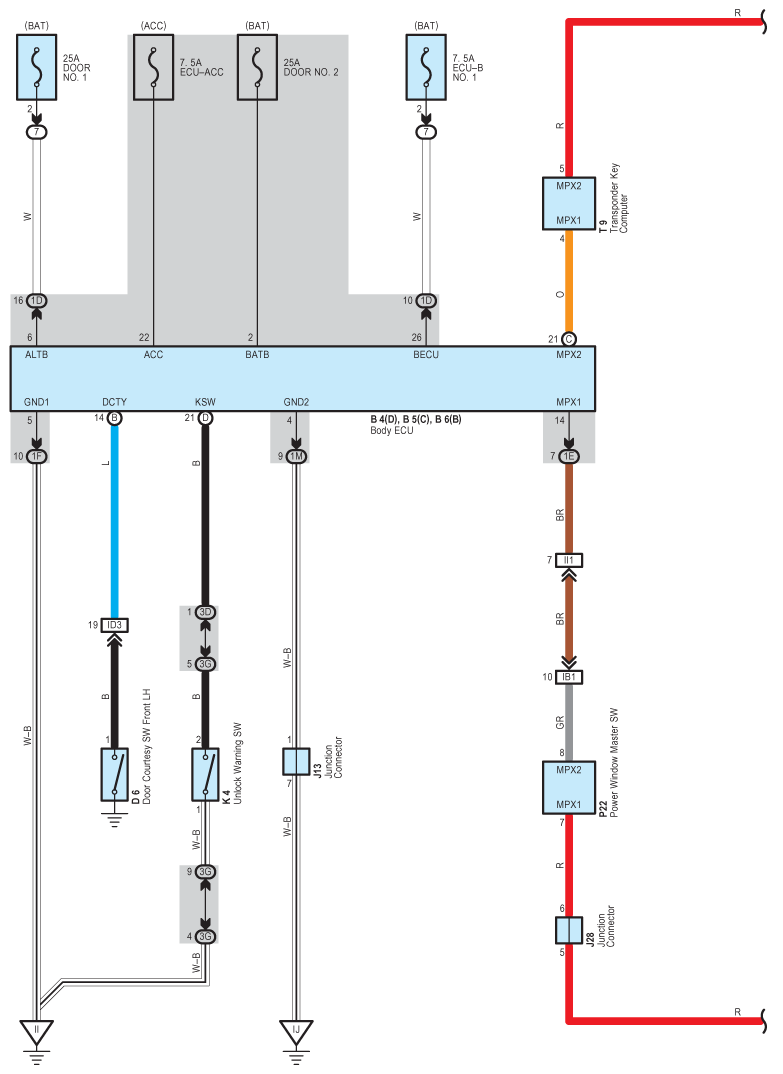

Fig 1: Key Reminder - Wiring Diagram (1 Of 2)
G08933001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

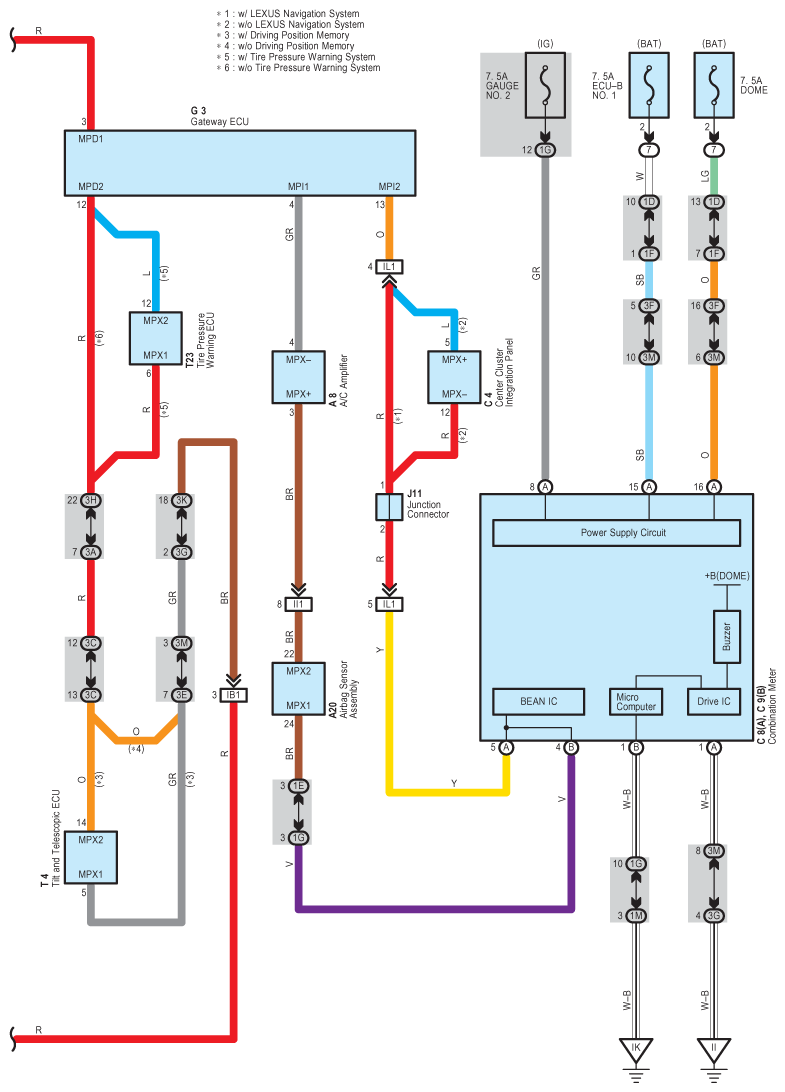

Fig 2: Key Reminder - Wiring Diagram (2 Of 2)
G08933002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
