Fuel Pump: Components

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G05200860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

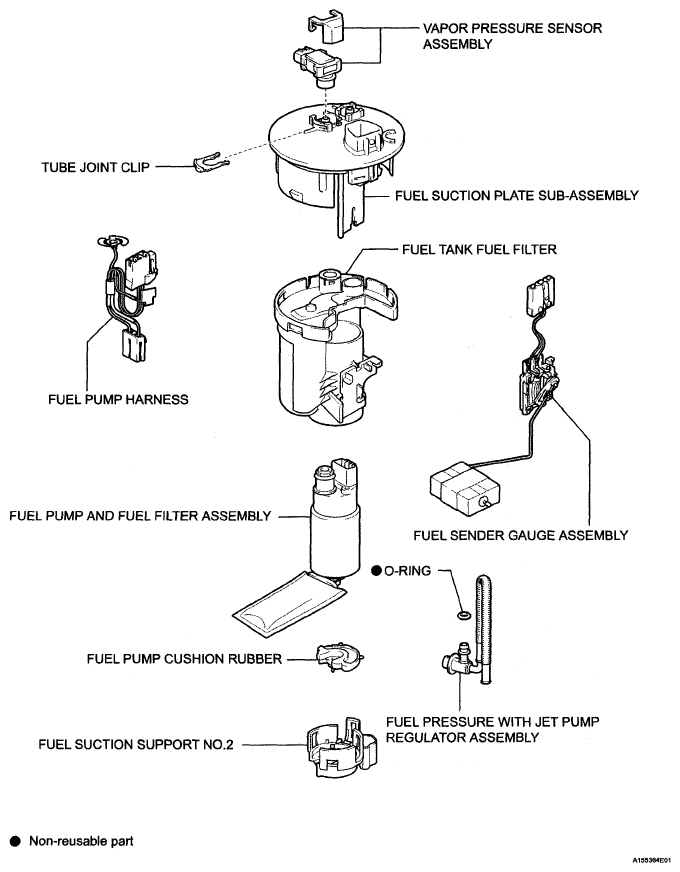

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G05200861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
