Parts Location

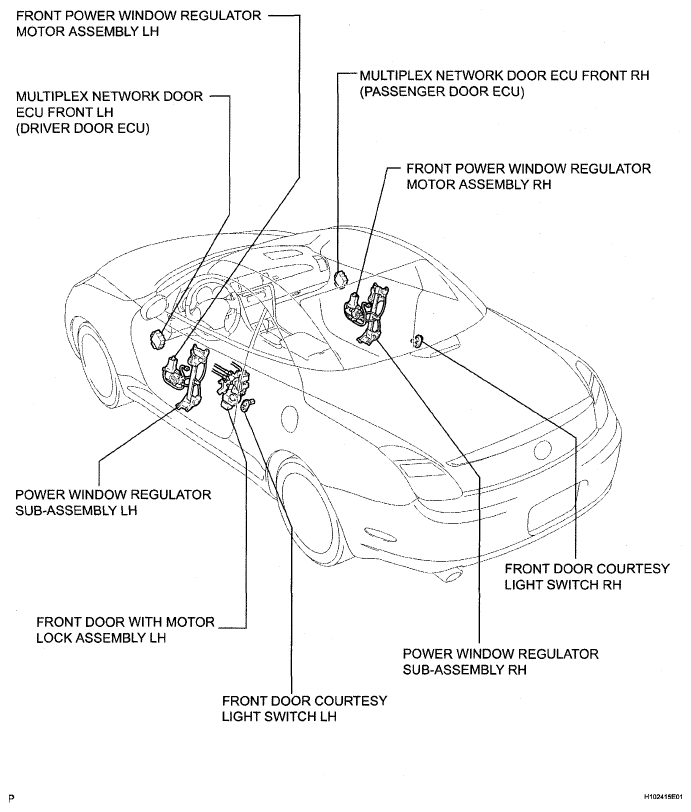

Fig 1: Identifying Power Window Control System Part Location (1 Of 3)
G05293408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

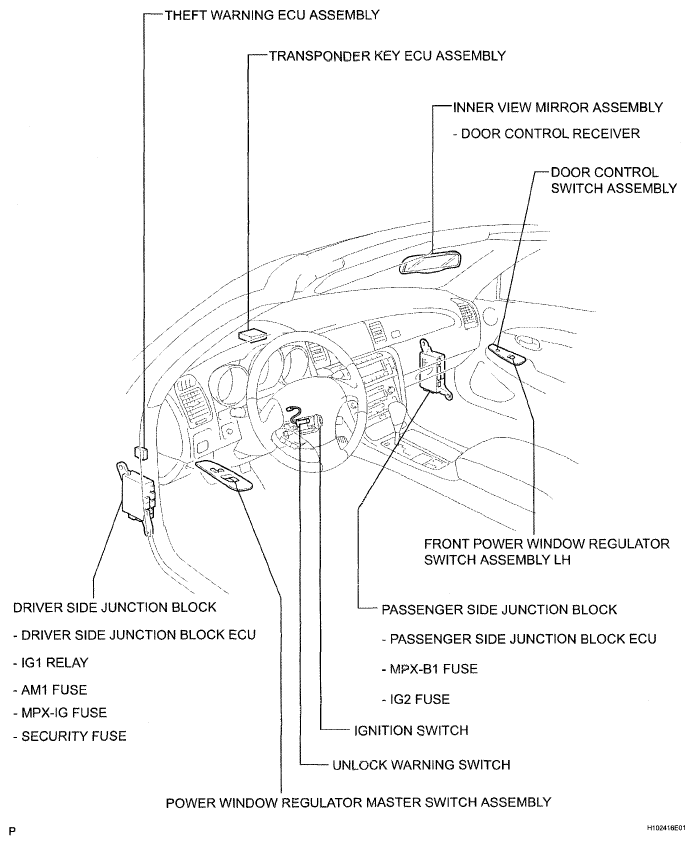

Fig 2: Identifying Power Window Control System Part Location (2 Of 3)
G05293409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

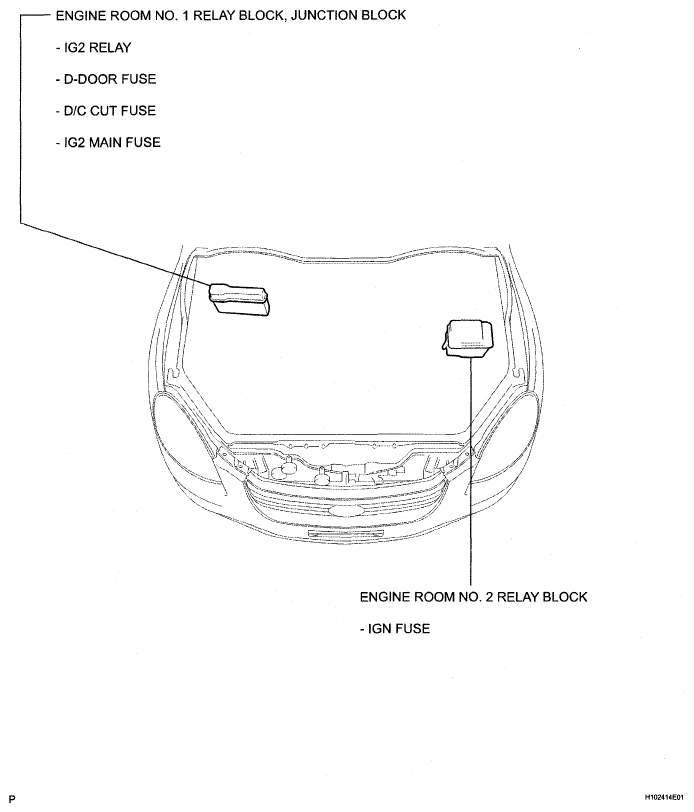

Fig 3: Identifying Power Window Control System Part Location (3 Of 3)
G05293410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
