Rear Window Defogger System does not Operate: Wiring Diagram

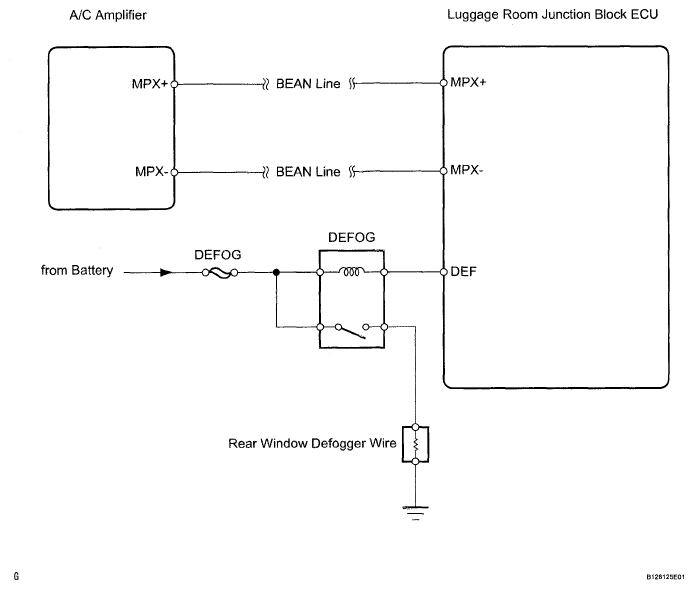

Fig 1: Rear Window Defogger - Wiring Diagram

G05293508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
