Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Windshield Glass >> Components

Windshield Glass: Components

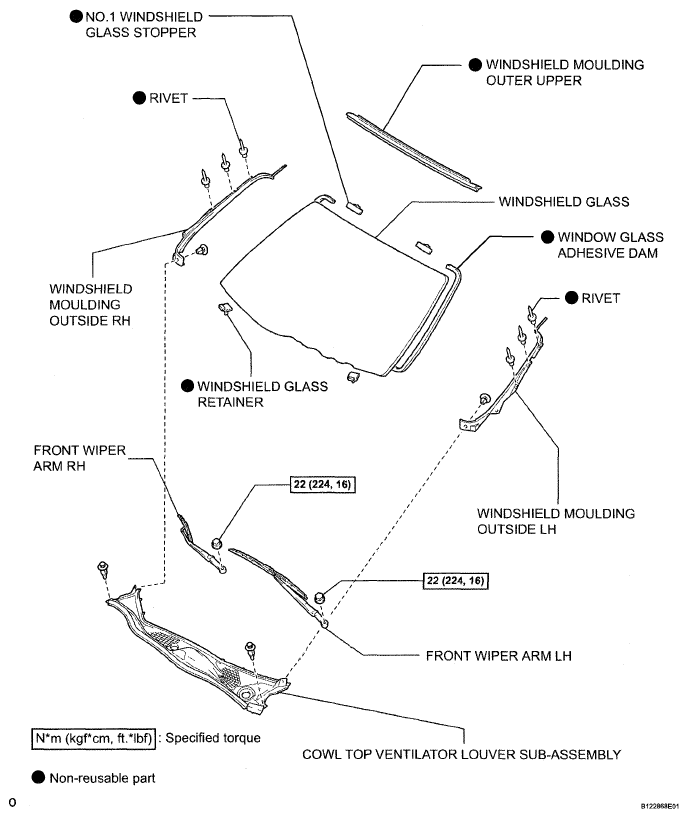

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 3)
G05293457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

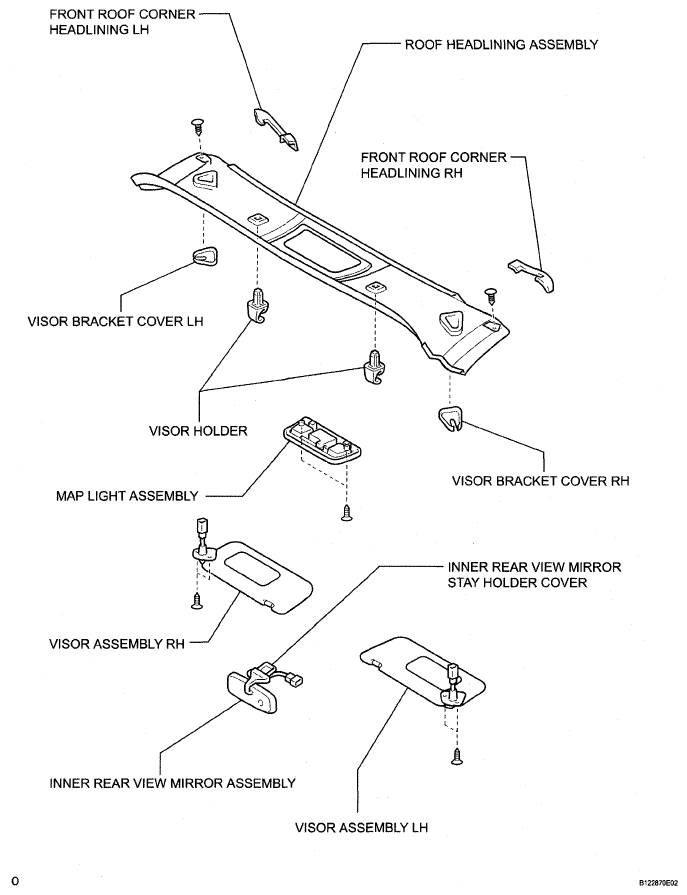

Fig 2: Identifying Windshield Glass Components (2 Of 3)
G05293458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

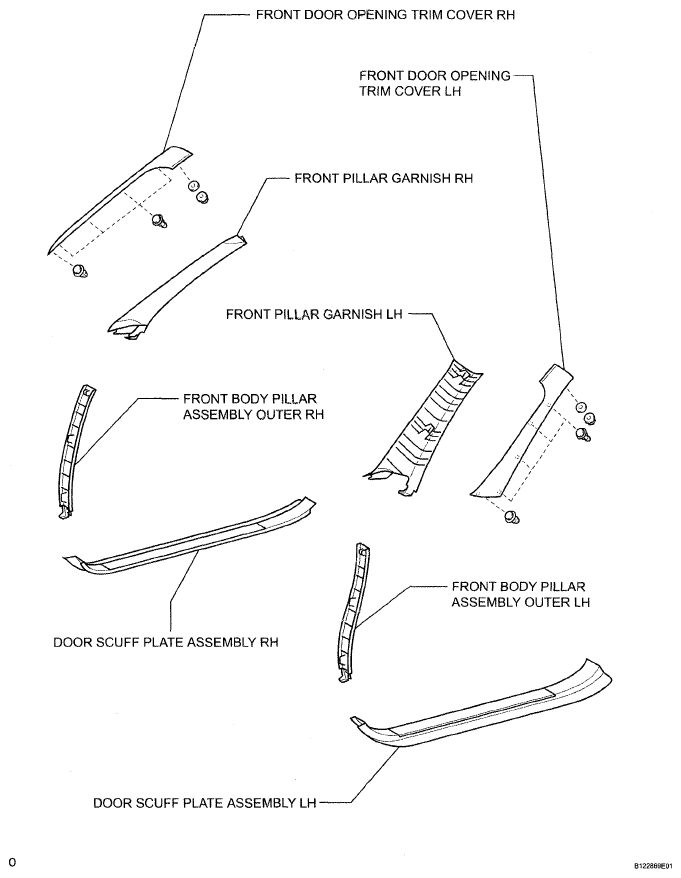

Fig 3: Identifying Windshield Glass Components (3 Of 3)
G05293459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
