Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Vehicle Stability Control System >> Parts Location

Parts Location

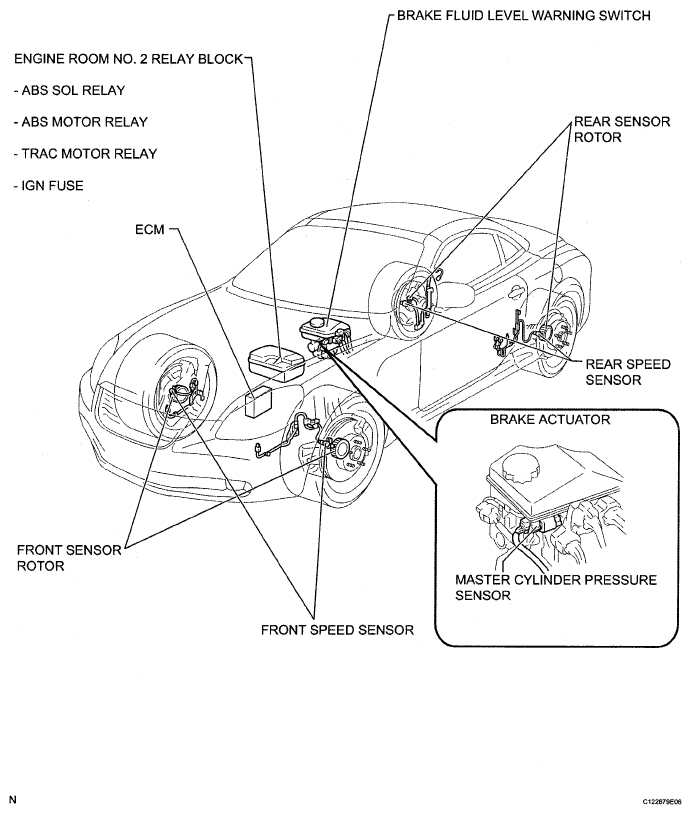

Fig 1: Identifying Vehicle Stability Control System Parts Location (1 Of 2)
G05290573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

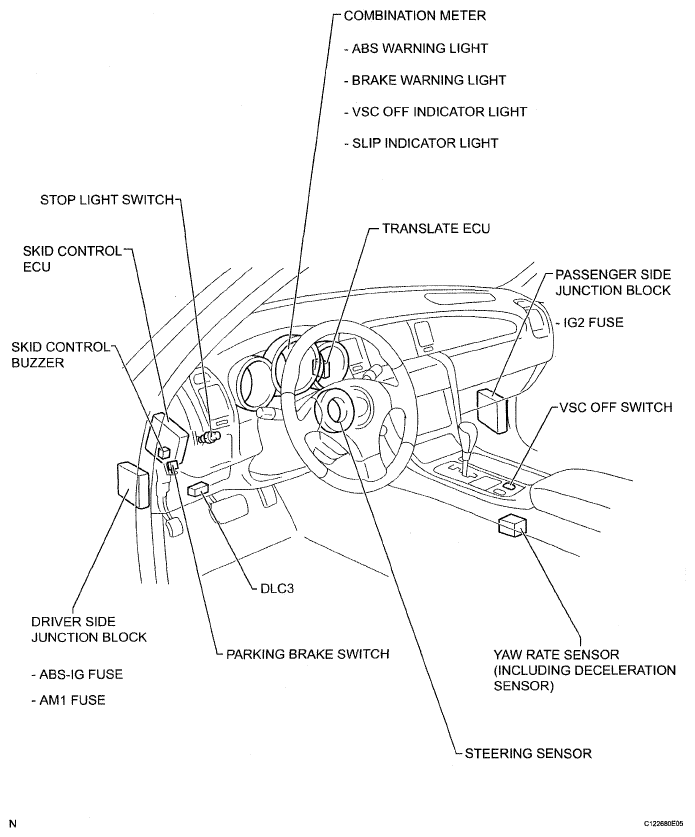

Fig 2: Identifying Vehicle Stability Control System Parts Location (2 Of 2)
G05290574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
