Rear Axle Hub: Components

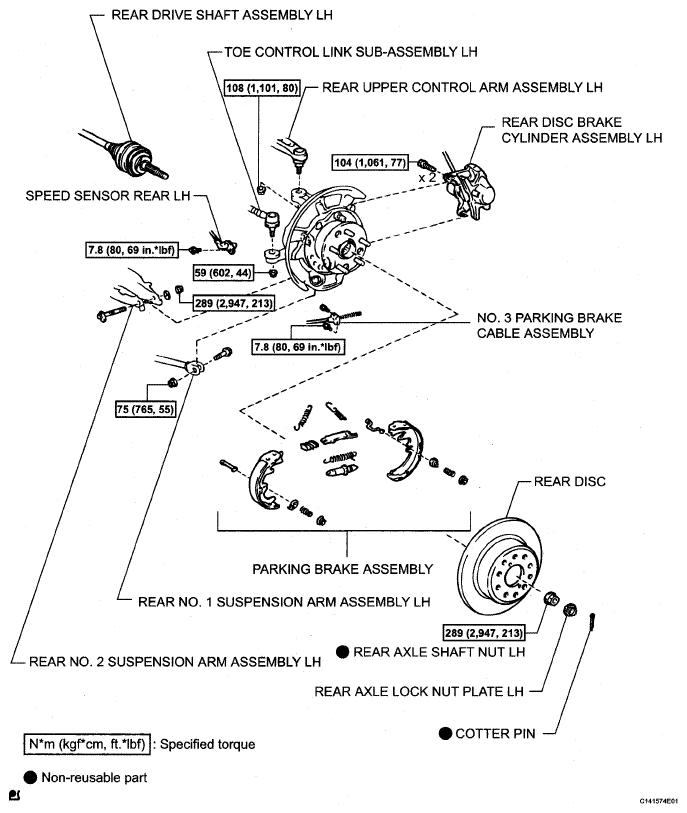

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications (1 Of 2)
G05290376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

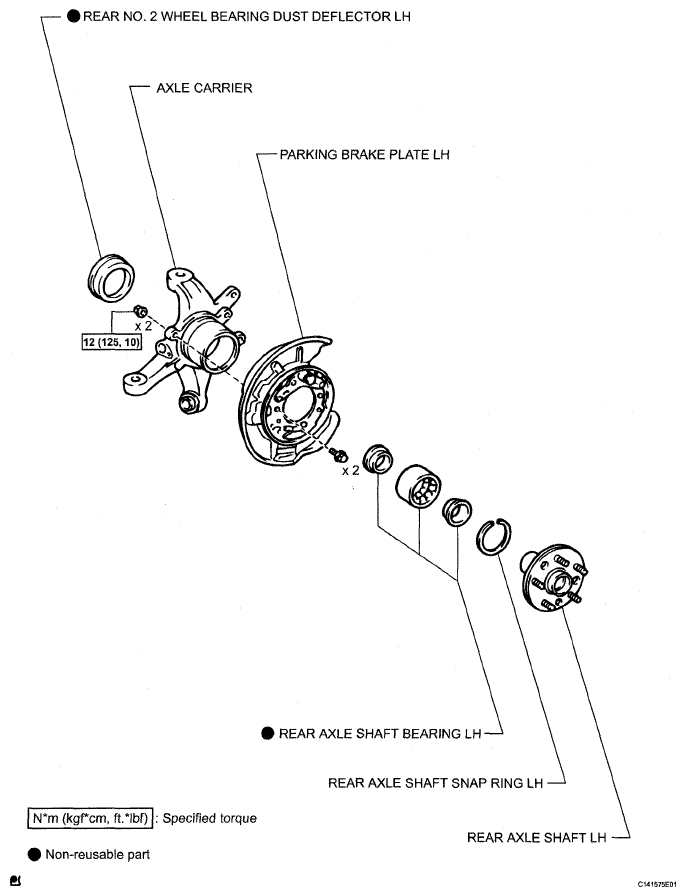

Fig 2: Rear Axle Hub Replacement Components With Torque Specifications (2 Of 2)
G05290377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
