Adaptive Front-Lighting System
>>
Notes
Adaptive Front-Lighting System: Notes

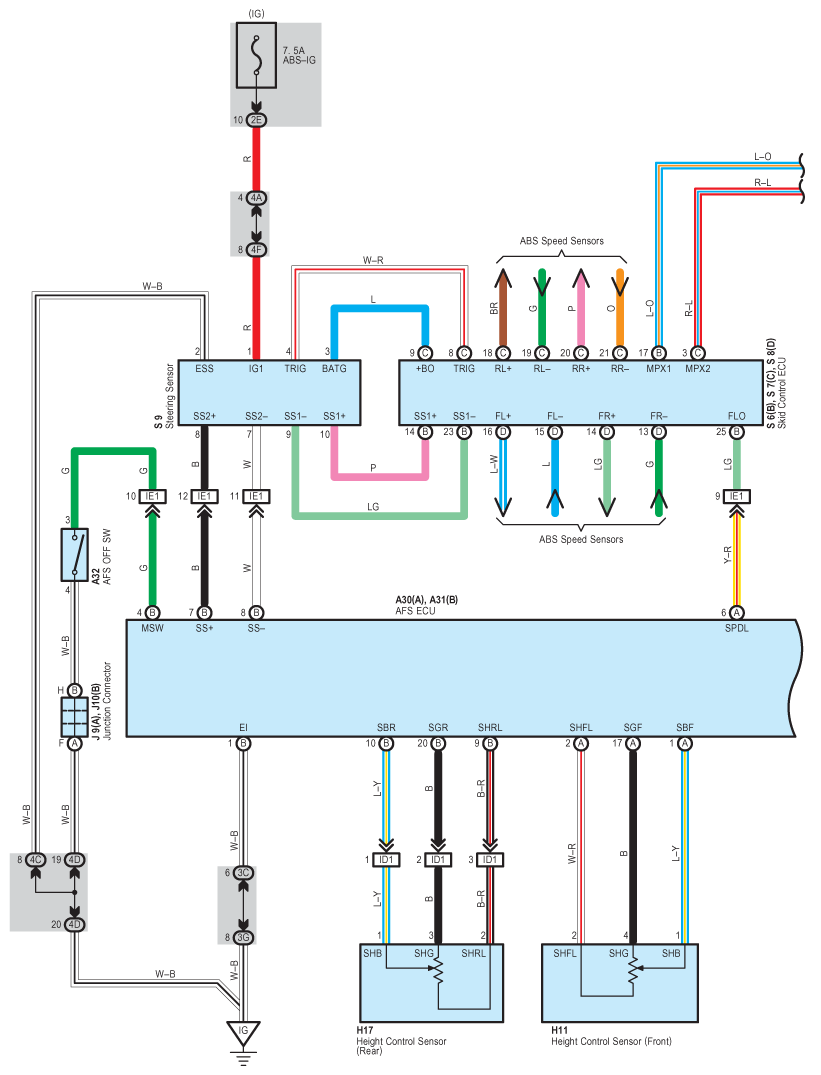

Fig 1: Adaptive Front-Lighting System - Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

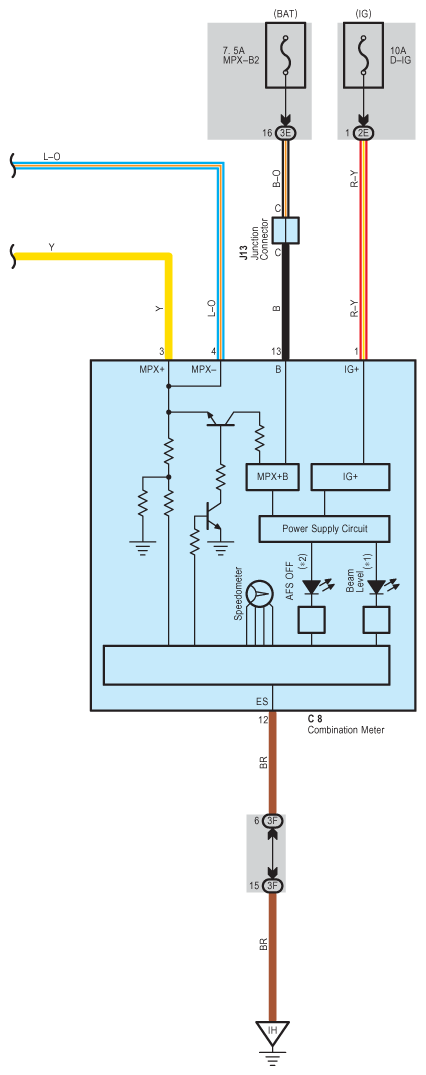

Fig 2: Adaptive Front-Lighting System - Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

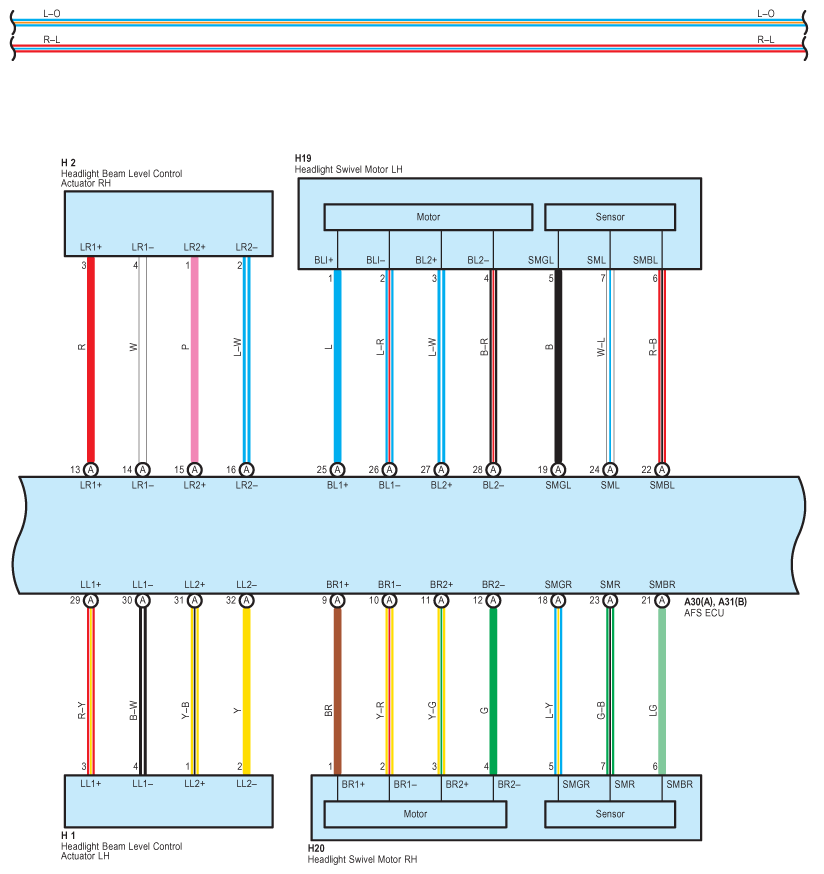

Fig 3: Adaptive Front-Lighting System - Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

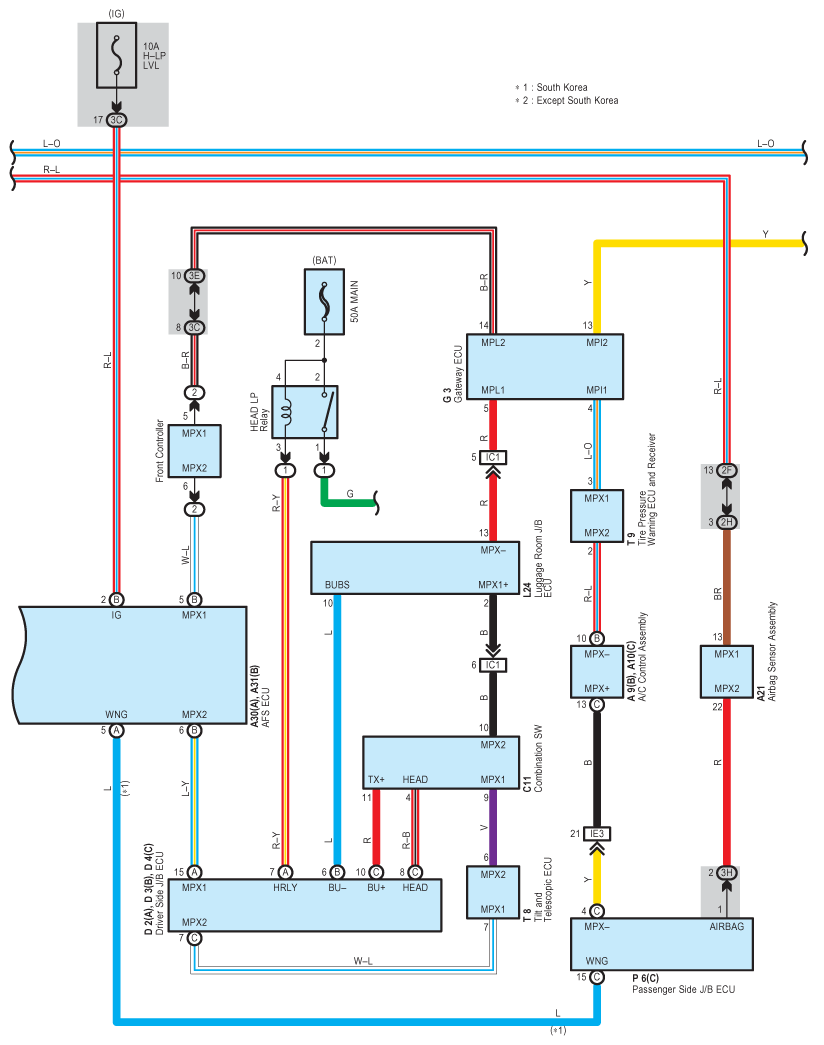

Fig 4: Adaptive Front-Lighting System - Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
