Cigarette Lighter and Power Outlet: Notes

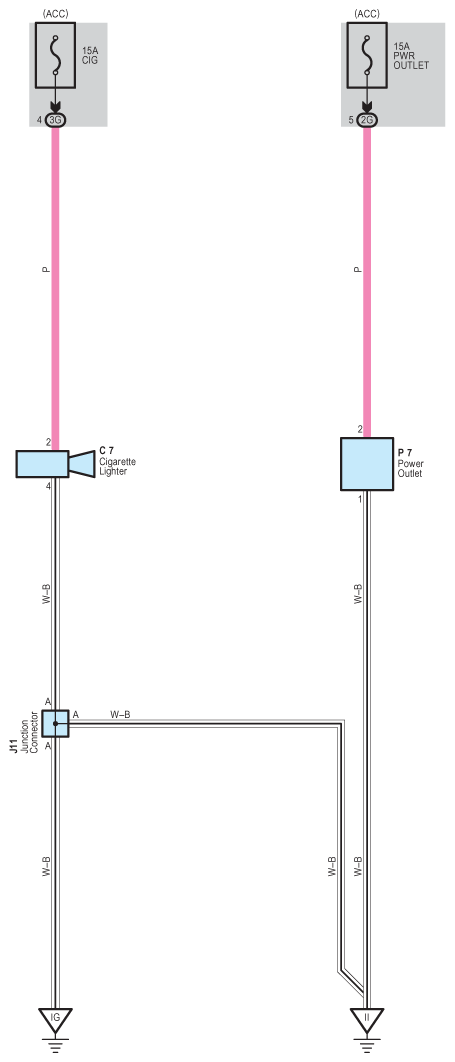

Fig 1: Cigarette Lighter And Power Outlet - Circuit Diagram

G08933903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
