Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Light Auto Turn Off System >> Notes

Light Auto Turn Off System: Notes

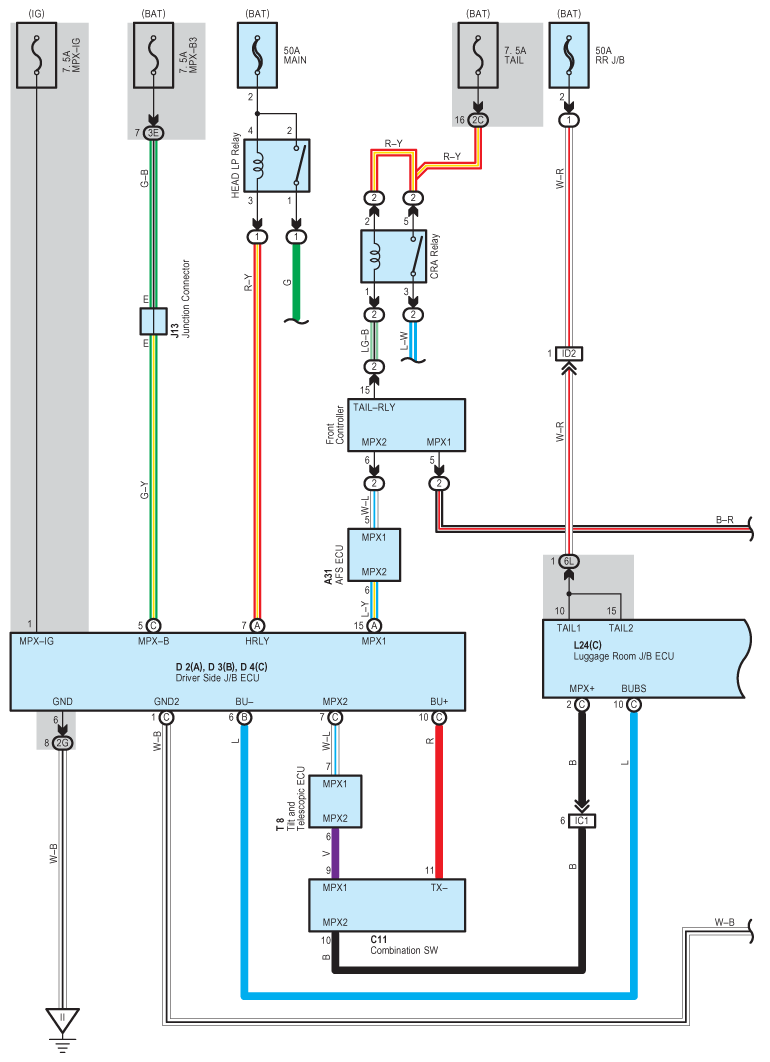

Fig 1: Light Auto Turn Off System - Wiring Diagram (1 Of 2)
G08933827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Light Auto Turn Off System - Wiring Diagram (2 Of 2)
G08933828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
