Power Source: Notes

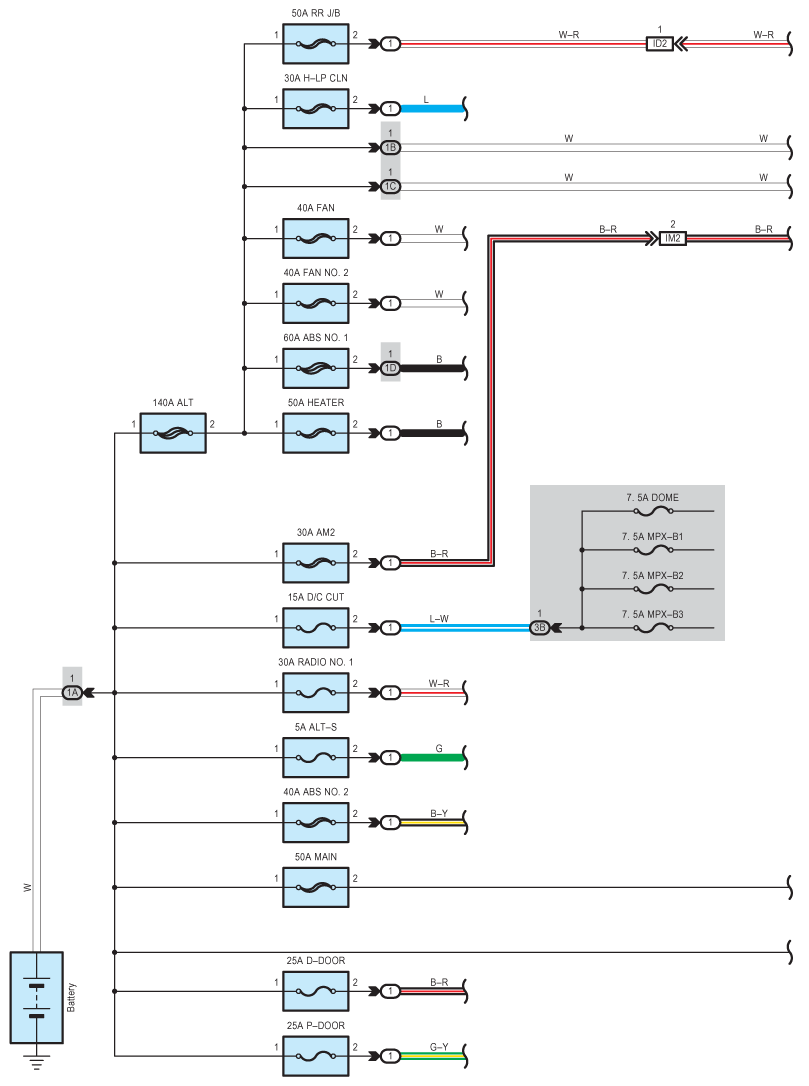

Fig 1: Power Source - Wiring Diagram (1 Of 4)
G08933753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

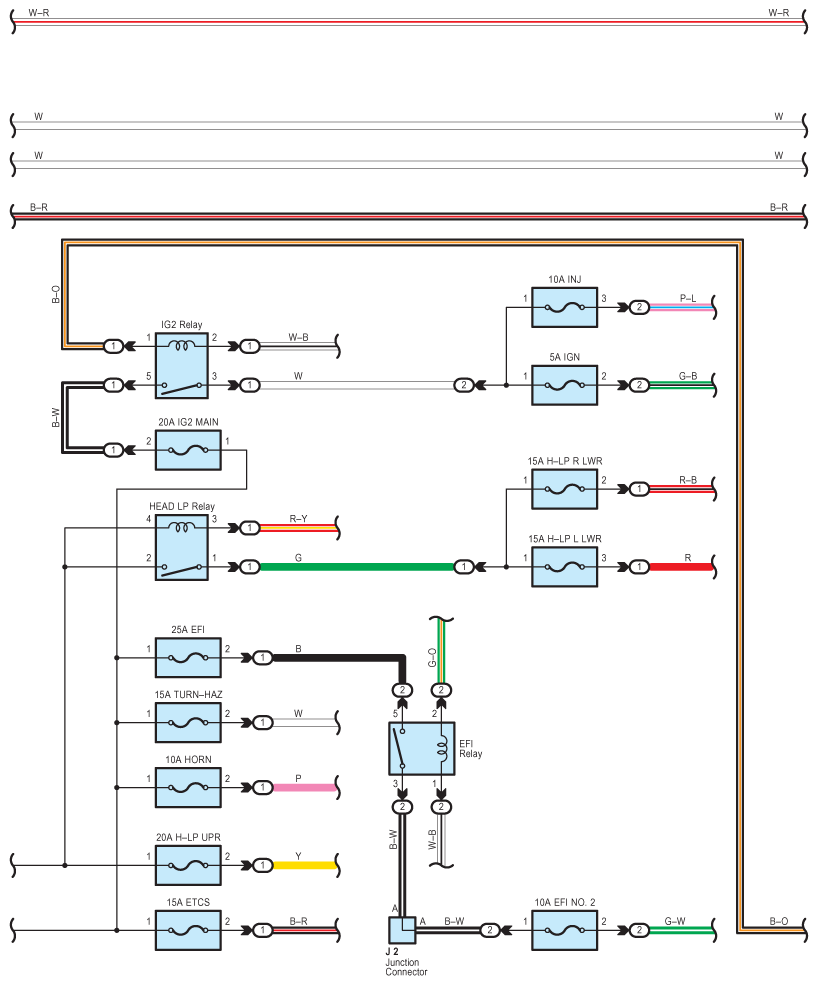

Fig 2: Power Source - Wiring Diagram (2 Of 4)
G08933754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

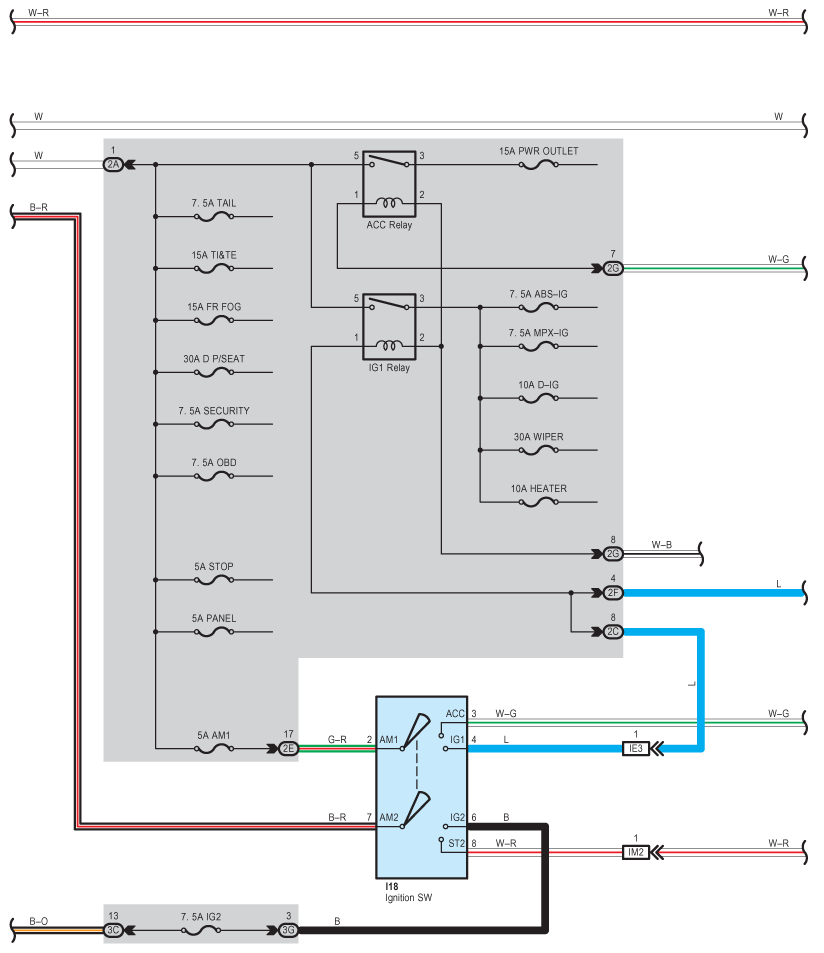

Fig 3: Power Source - Wiring Diagram (3 Of 4)
G08933755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

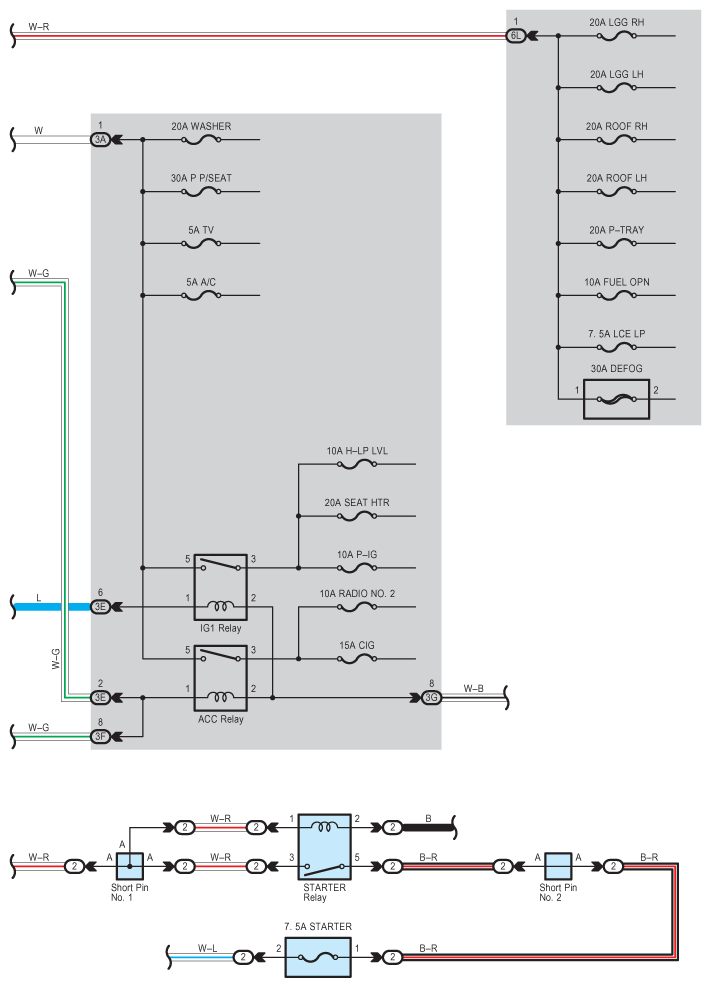

Fig 4: Power Source - Wiring Diagram (4 Of 4)
G08933756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
