Parts Location

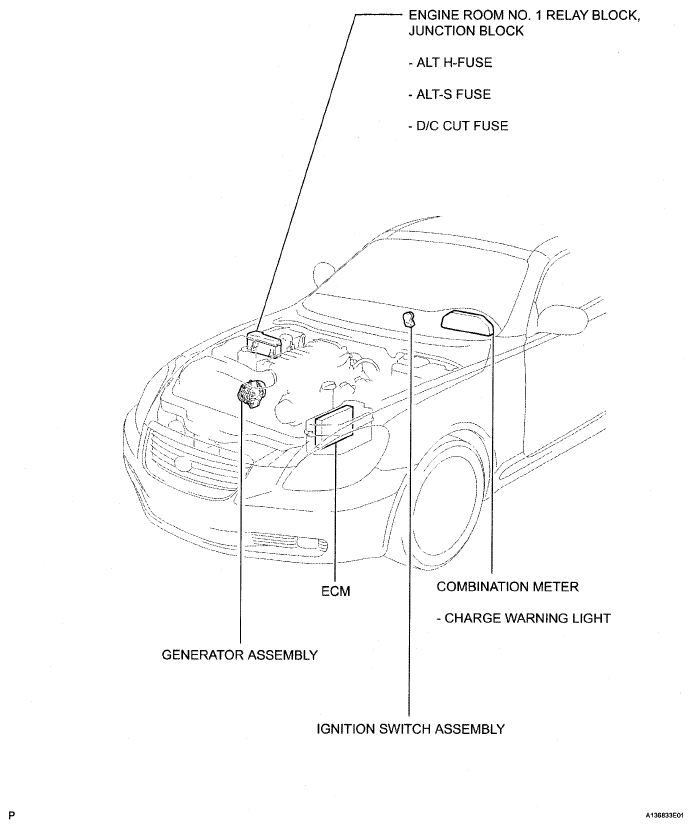

Fig 1: Identifying Charging System Parts Location (1 Of 2)
G05289470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Charging System Parts Location (2 Of 2)
G05289471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
