Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control >> Canister >> Components

Emission Control: Canister: Components

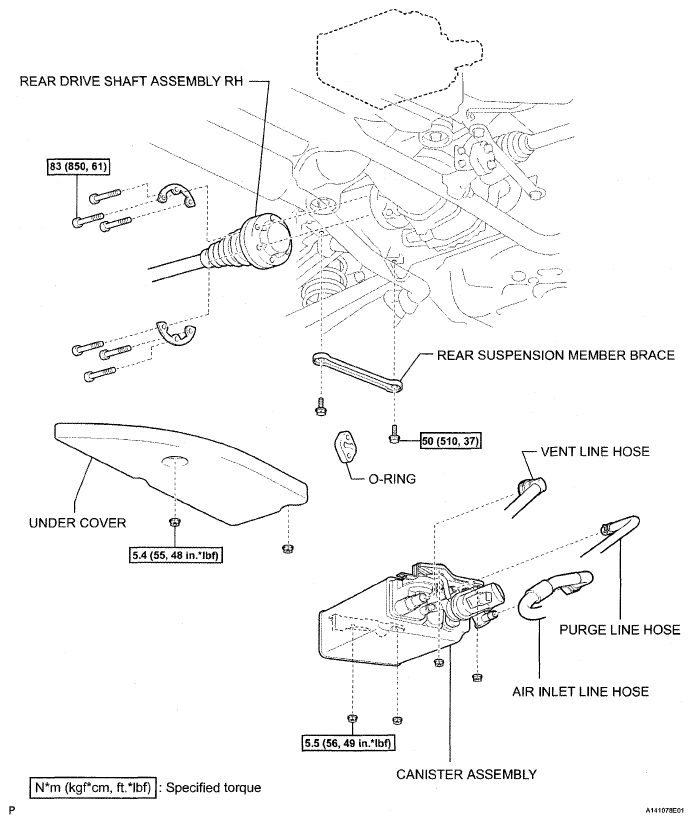

Fig 1: Canister Replacement Components With Torque Specifications

G05289215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
