Vane Pump: Components

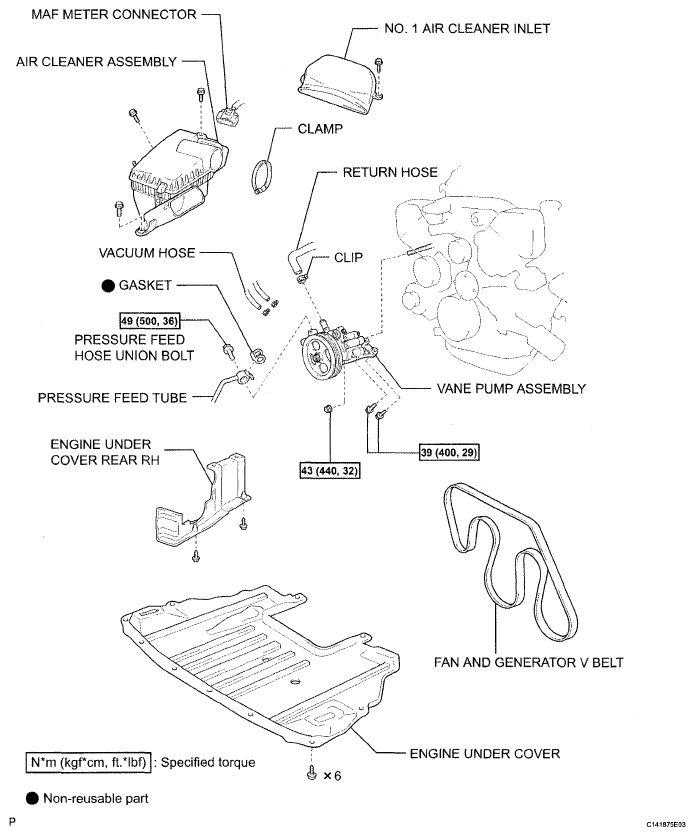

Fig 1: Vane Pump Replacement Components With Torque Specifications (1 Of 3)
G05291722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

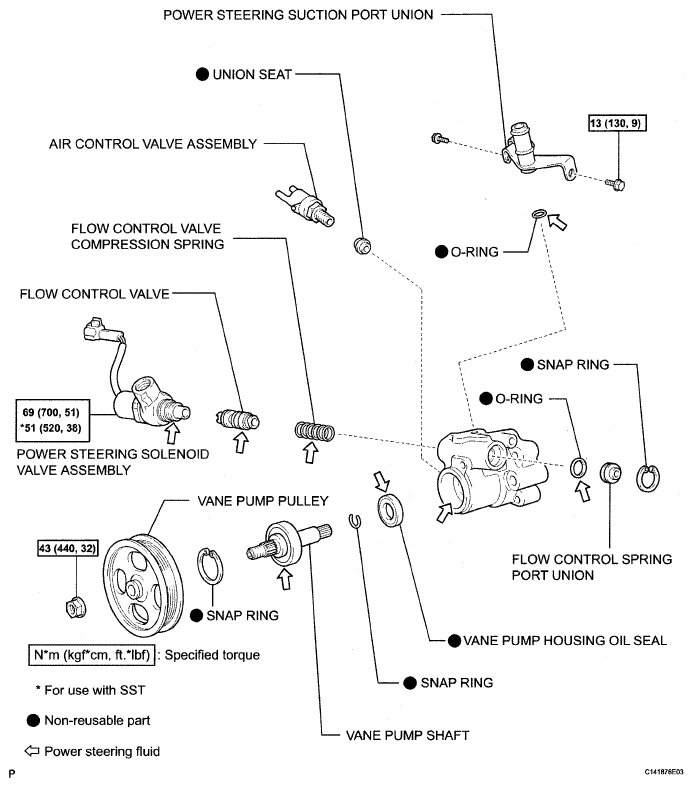

Fig 2: Vane Pump Replacement Components With Torque Specifications (2 Of 3)
G05291723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

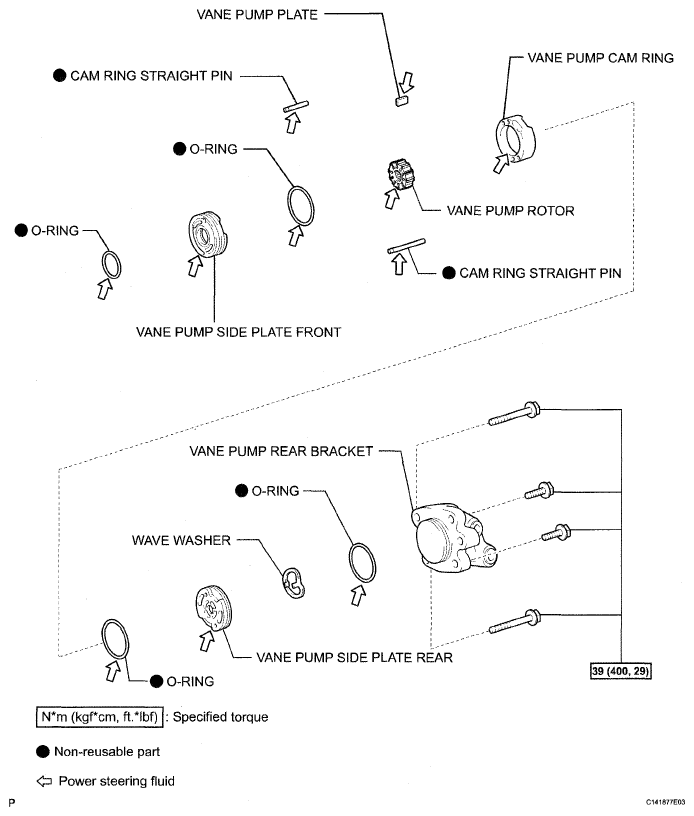

Fig 3: Vane Pump Replacement Components With Torque Specifications (3 Of 3)
G05291724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
