Automatic Transmission Unit: Components

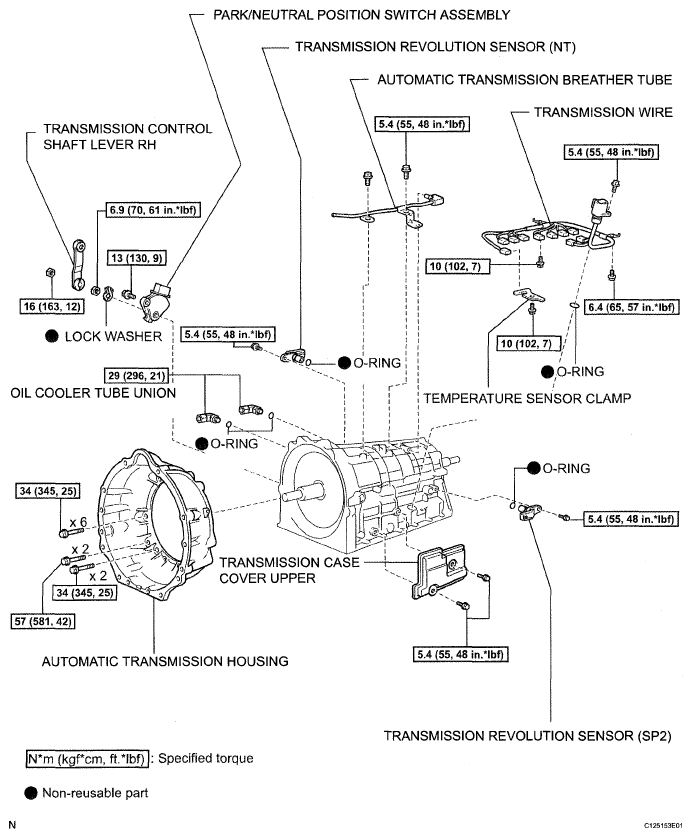

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

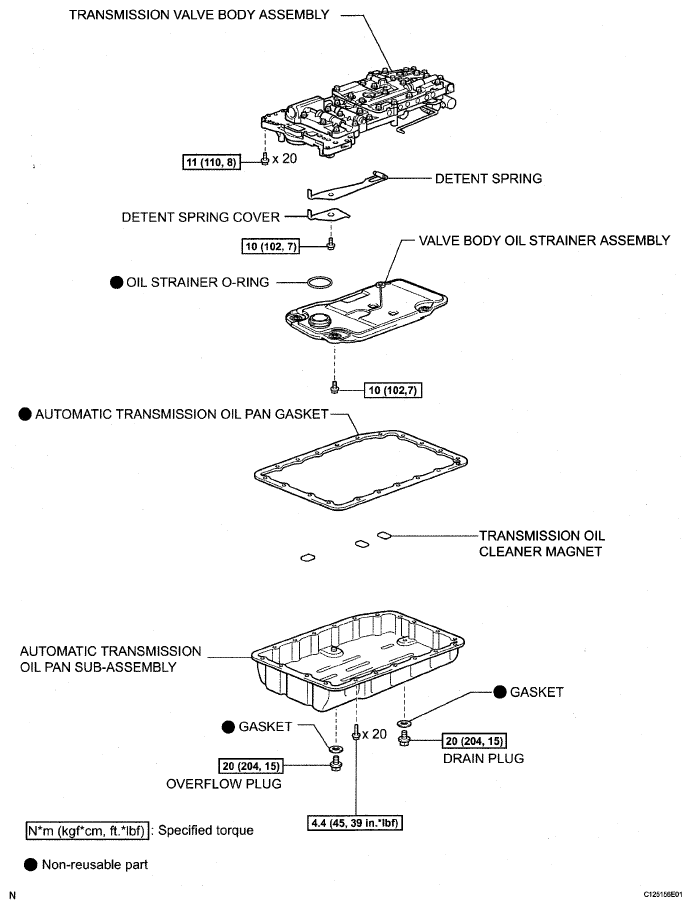

Fig 2: Automatic Transmission Unit Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Automatic Transmission Unit Components With Torque Specification (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Automatic Transmission Unit Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Automatic Transmission Unit Components With Torque Specification (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

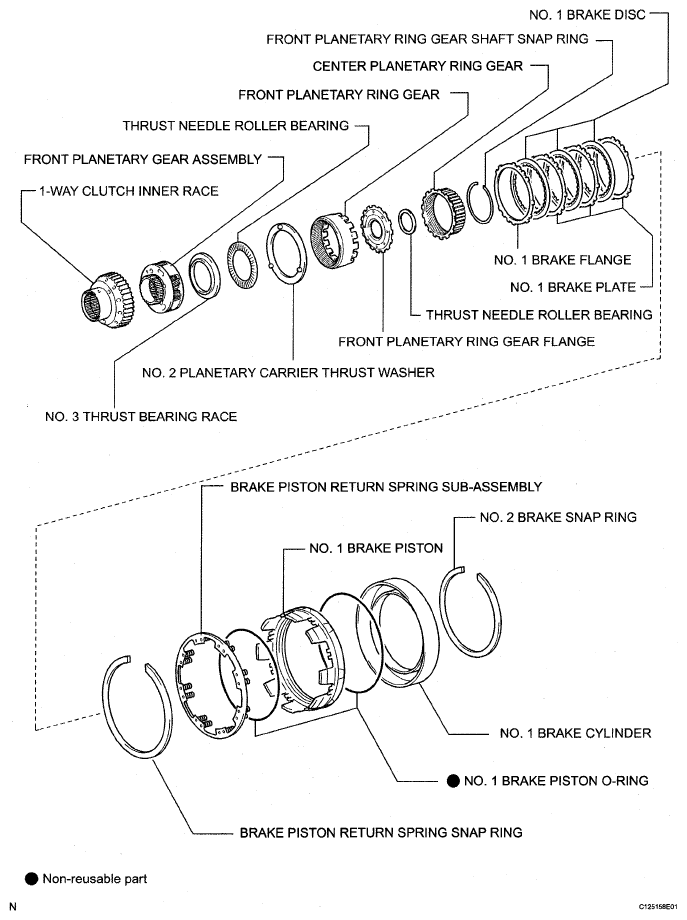

Fig 6: Identifying Automatic Transmission Unit Components (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Automatic Transmission Unit Components (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Automatic Transmission Unit Components (9 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
