Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Clock with Navigation System >> Notes

Clock with Navigation System: Notes

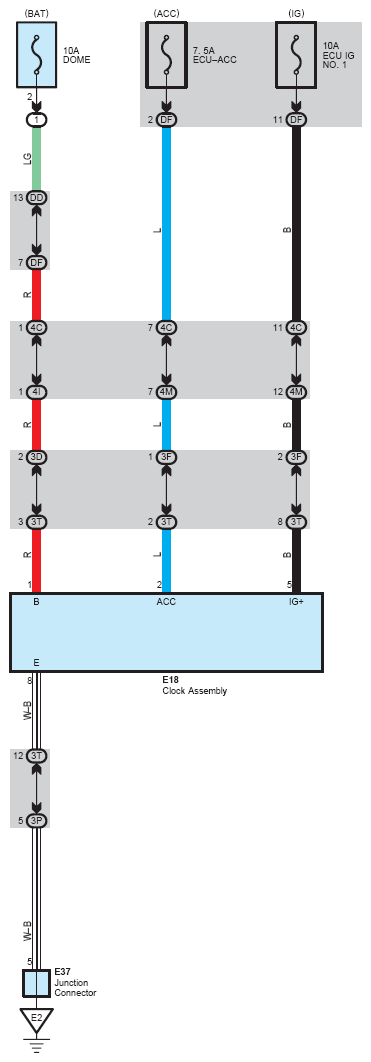

Fig 1: Clock With Navigation System - Circuit Diagram

G07619293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
