Active Control Engine Mount Ecu: Components

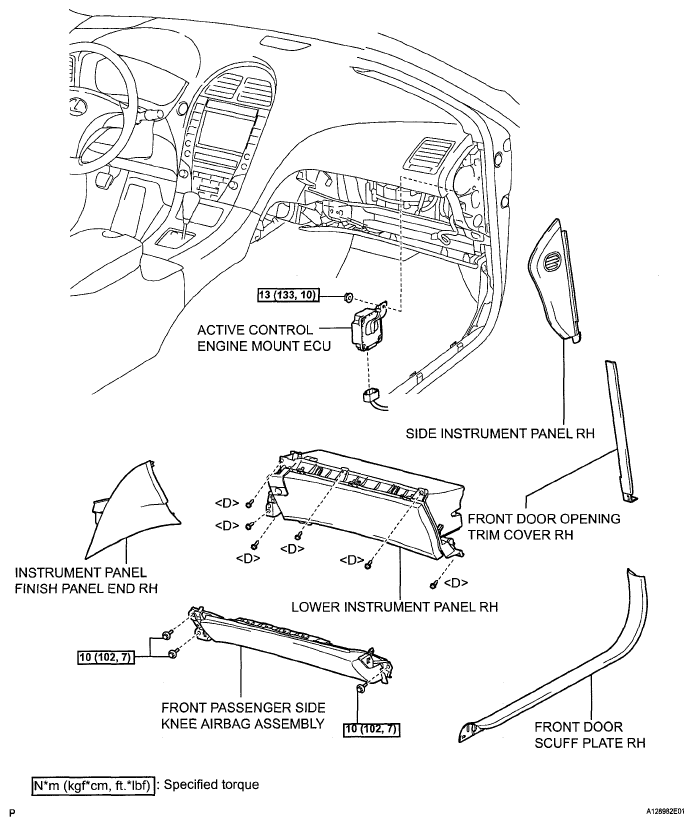

Fig 1: Active Control Engine Mount ECU Replacement Components With Torque Specifications

G05247995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
