Active Control Engine Mount: Components

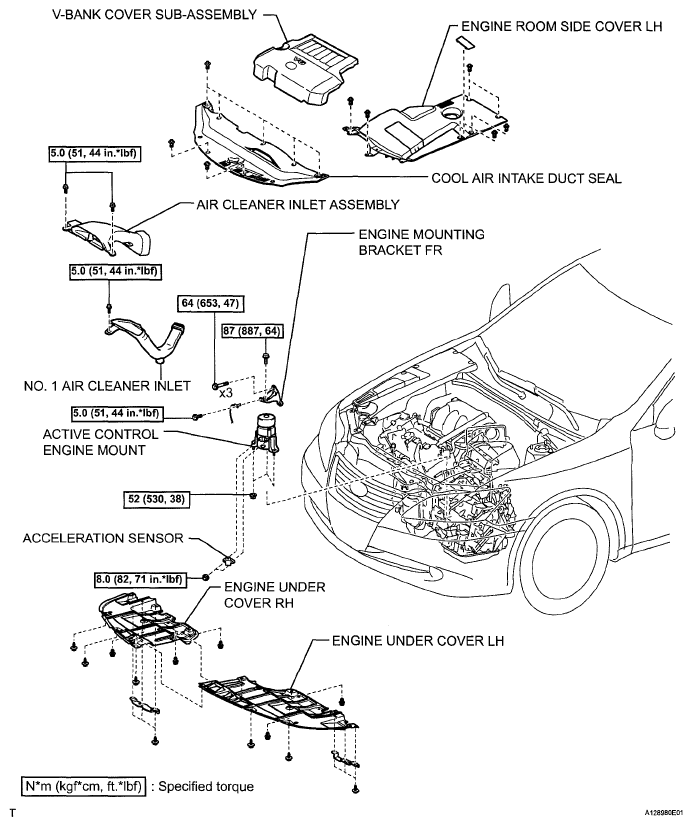

Fig 1: Active Control Engine Mount Replacement Components With Torque Specifications

G05247977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
