Stereo Component Amplifier: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

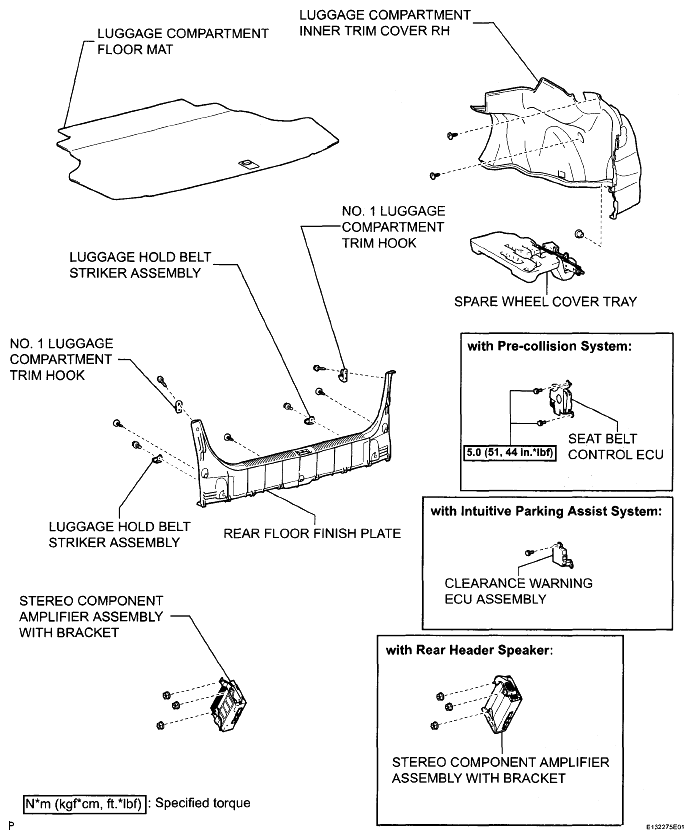

Fig 1: Stereo Component Amplifier Replacement Components With Torque Specifications (1 Of 2)
G05253031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

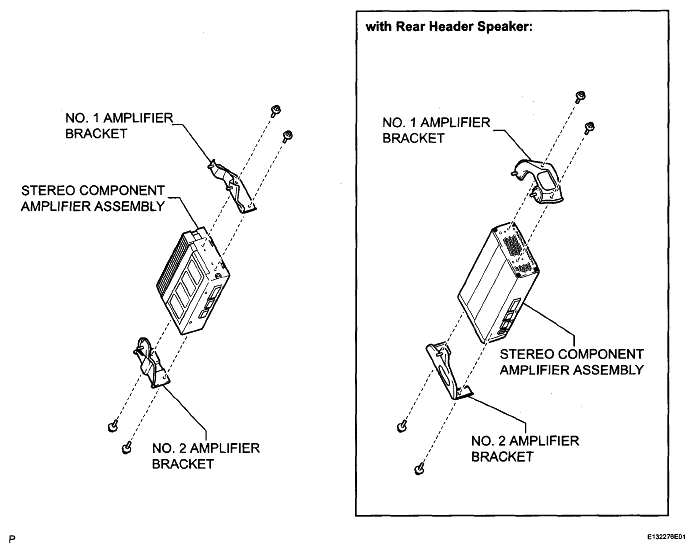

Fig 2: Identifying Stereo Component Amplifier Components (2 Of 2)
G05253032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
