Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Differential Case >> Components

Differential Case: Components

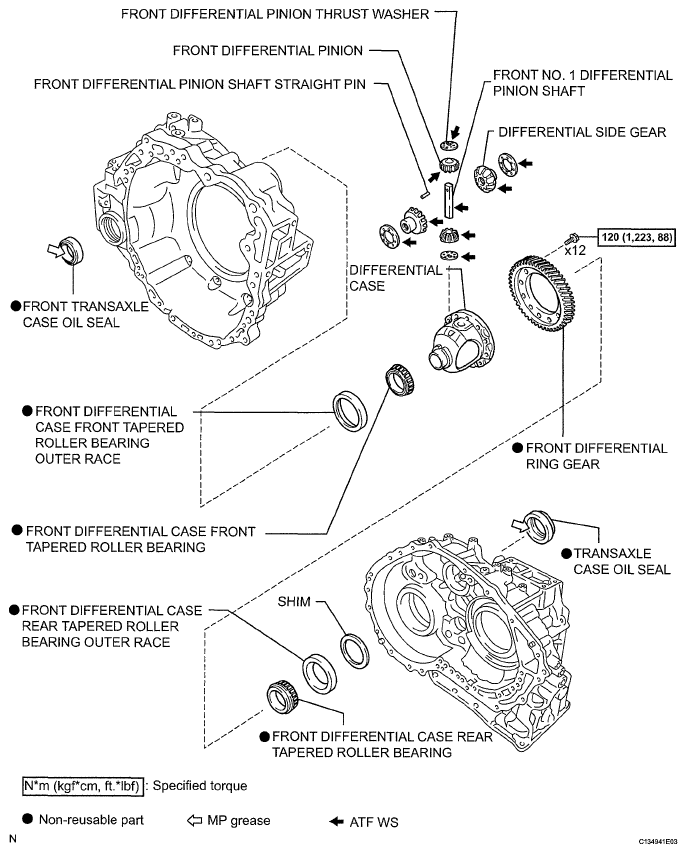

Fig 1: Differential Case Replacement Components With Torque Specifications
G05836586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
