Differential Oil Seal: Components

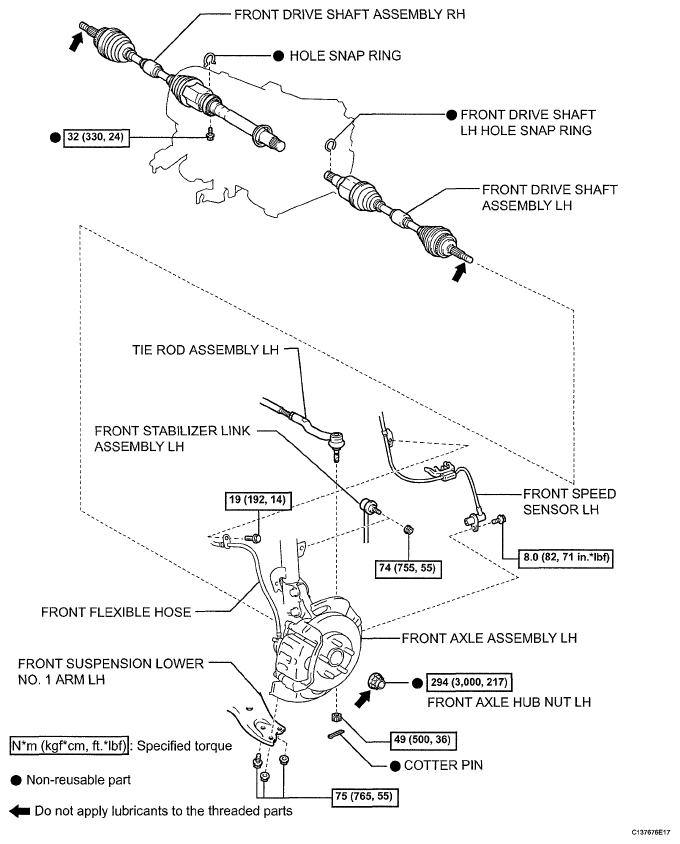

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications (1 Of 2)
G05836252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

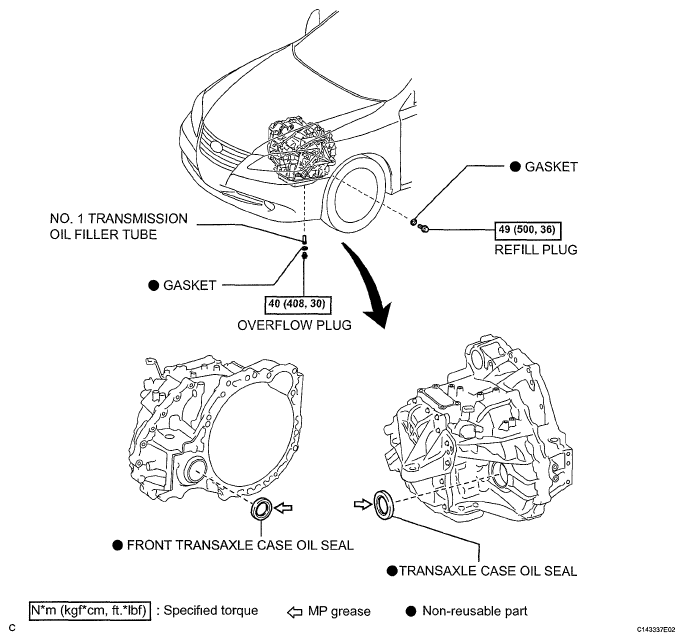

Fig 2: Differential Oil Seal Replacement Components With Torque Specifications (2 Of 2)
G05836253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
