Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> TCM >> Components

Automatic Transaxle: TCM: Components

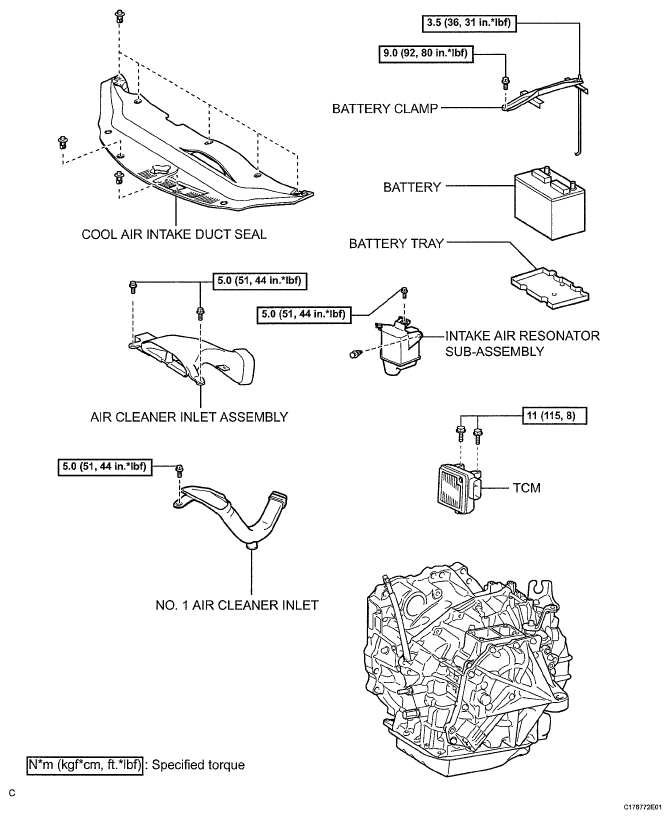

Fig 1: TCM Replacement Components With Torque Specifications
G05836314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
