Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Transmission Control Cable Assembly >> Components

Transmission Control Cable Assembly: Components

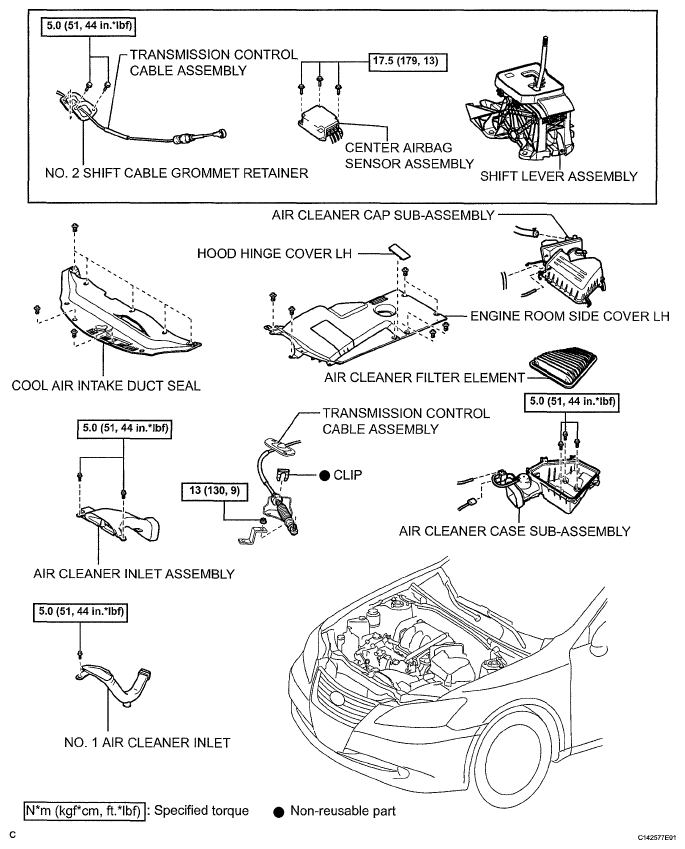

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications

G05836237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
