Back Window Glass: Components

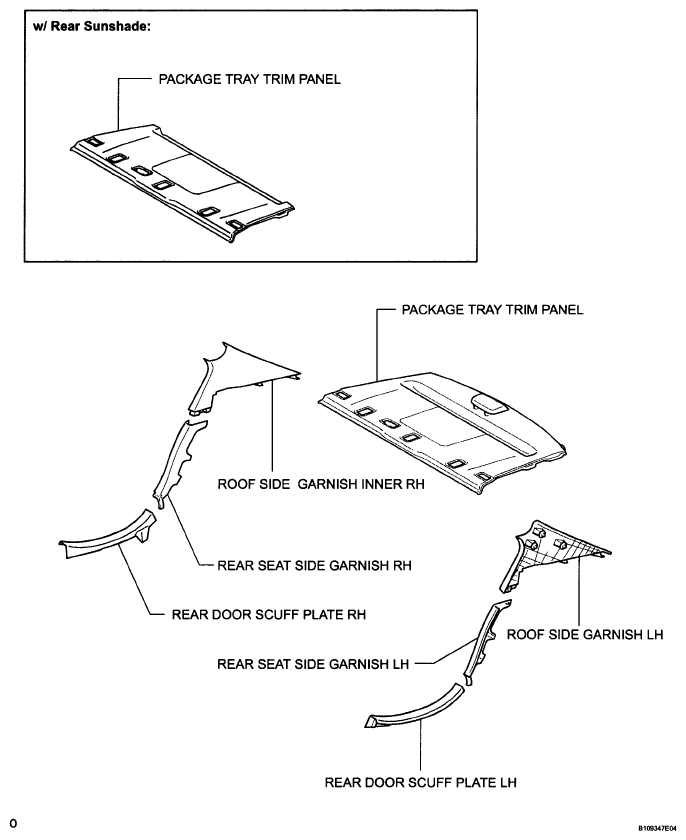

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specification (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

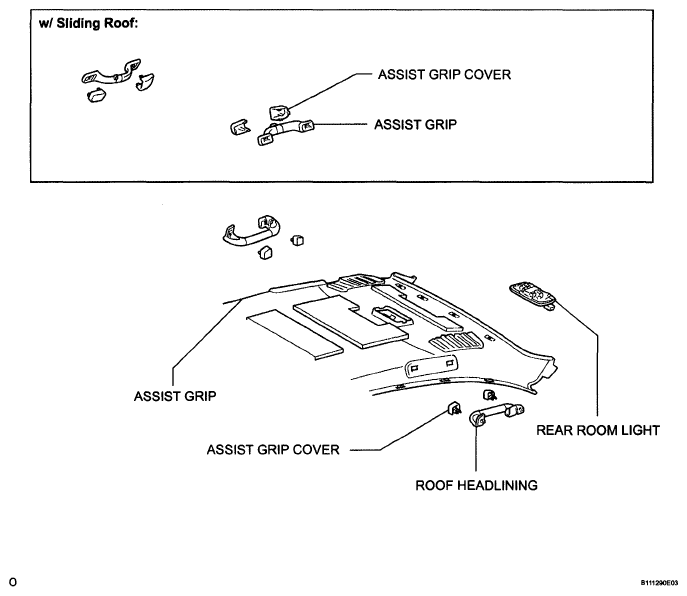

Fig 2: Back Window Glass Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

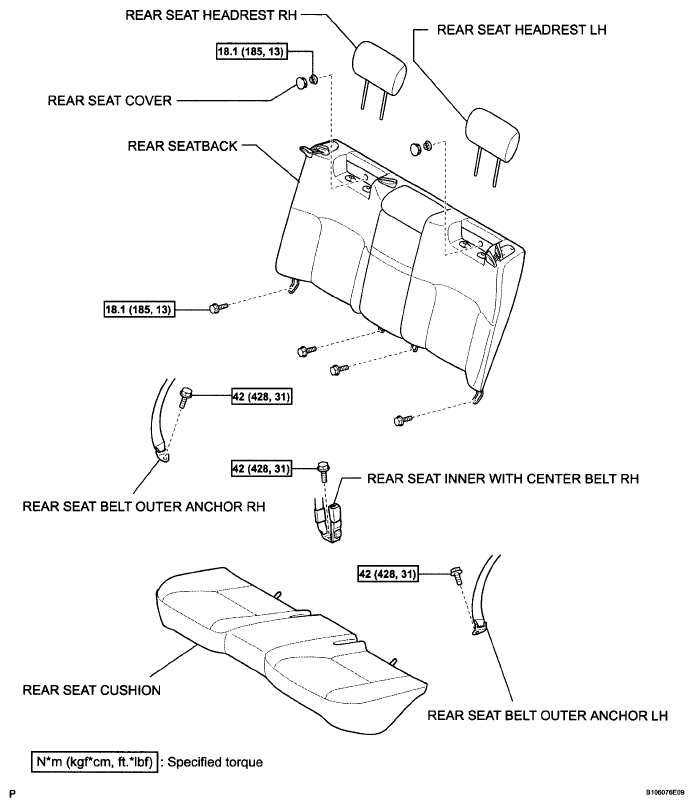

Fig 3: Identifying Back Window Glass Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

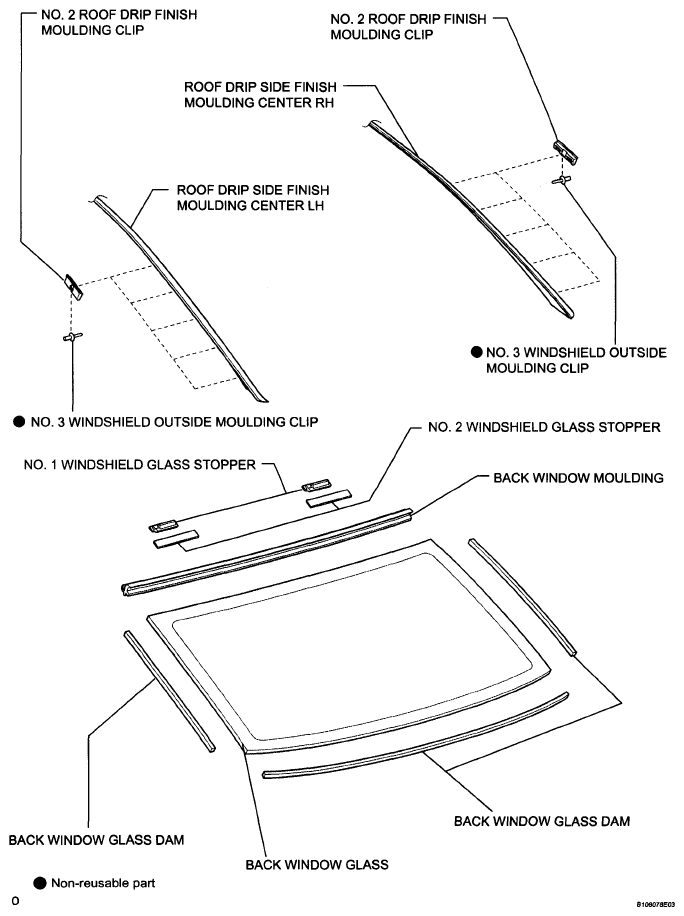

Fig 4: Identifying Back Window Glass Replacement Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
