Power Window Control System
>>
Parts Location
Parts Location

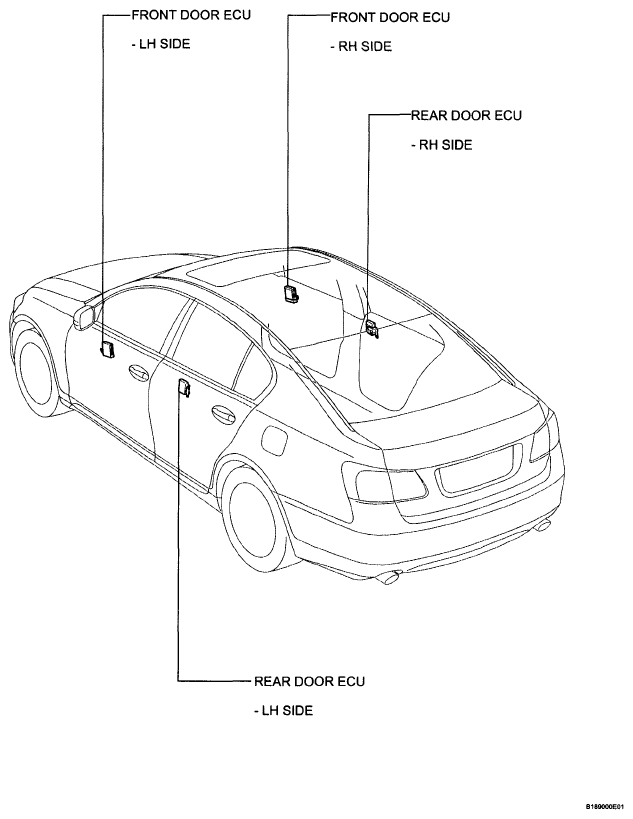

Fig 1: Identifying Power Window Control System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

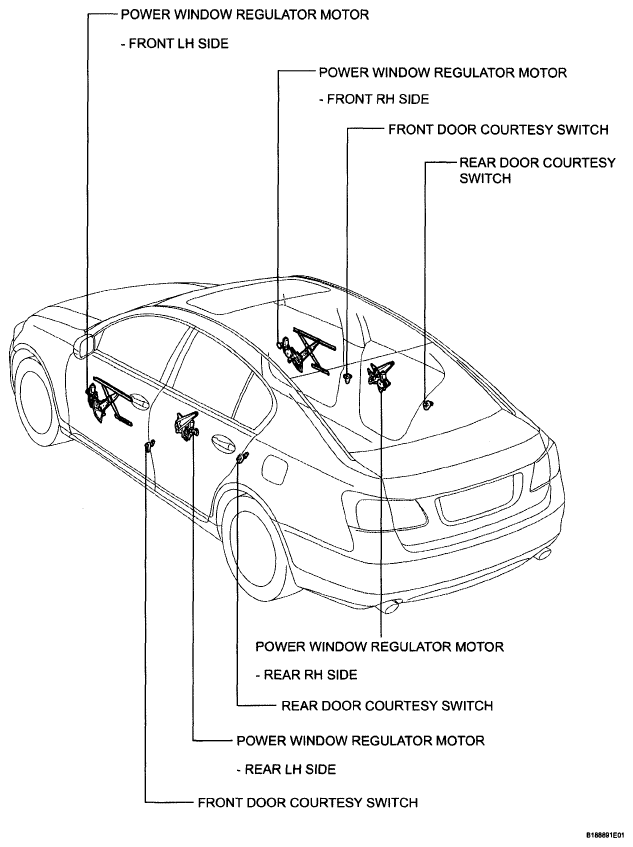

Fig 2: Identifying Power Window Control System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

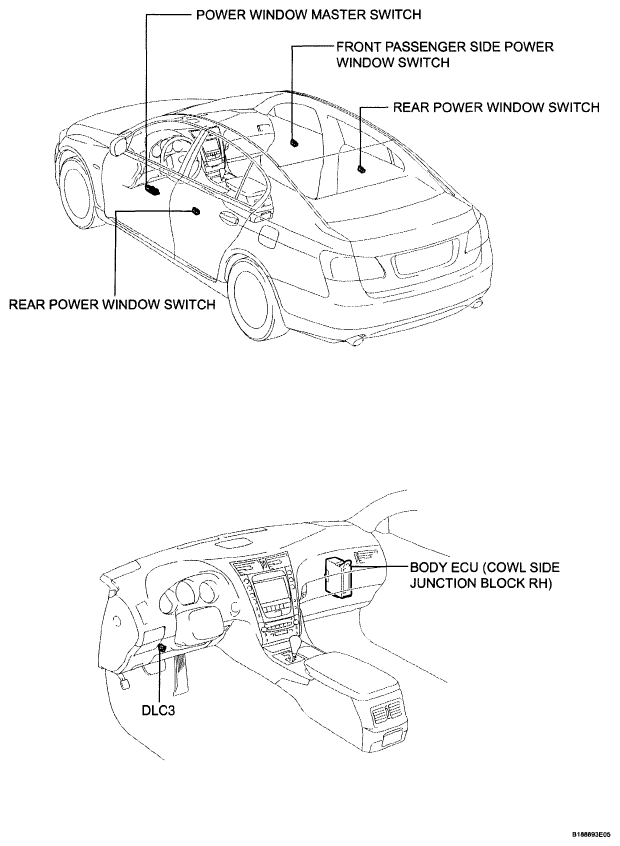

Fig 3: Identifying Power Window Control System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
