Brake Actuator: Components

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specification (1 Of 2)
G05816403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

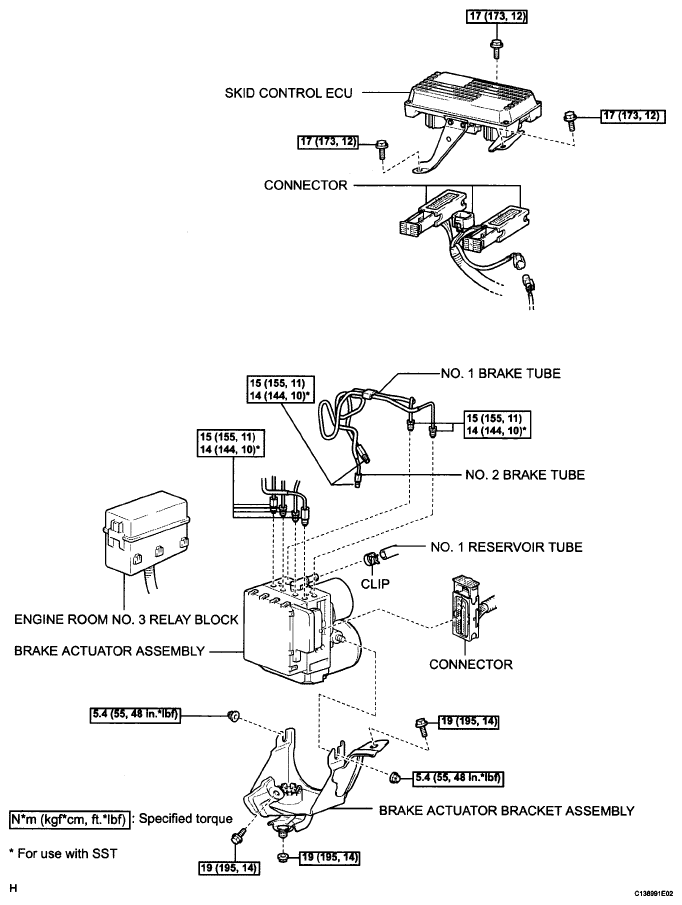

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G05816404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
