Brake Pedal Stroke Sensor: Components

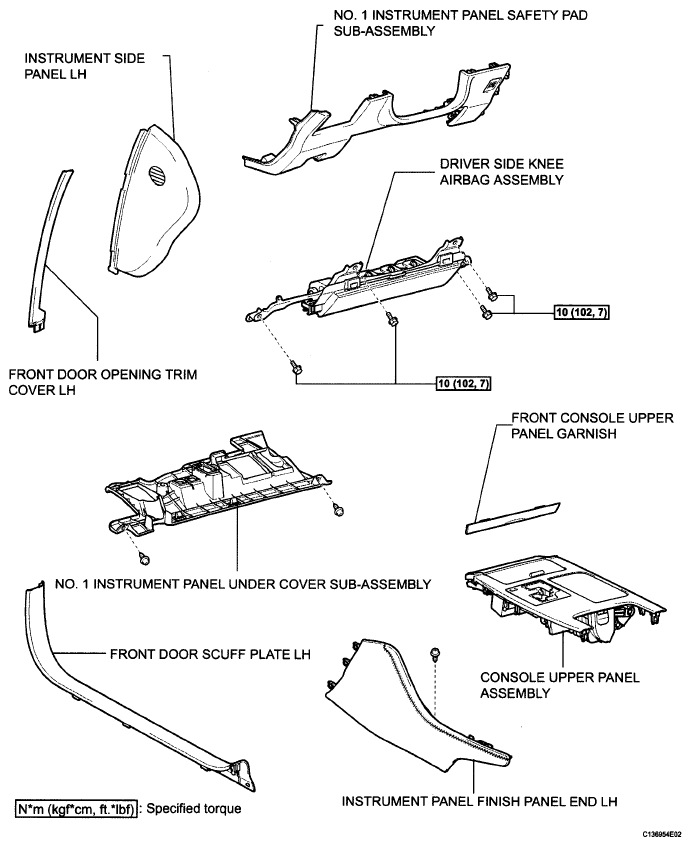

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specification (1 Of 2)
G05816447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

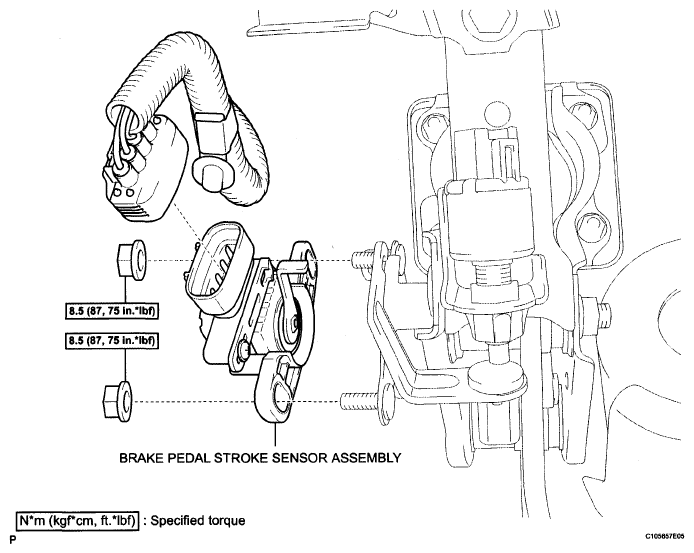

Fig 2: Brake Pedal Stroke Sensor With Torque Specification (2 Of 2)
G05816448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
