Home >> Lexus >> 2008 >> GS 450h >> Repair and Diagnosis >> Suspension >> Front Suspension >> Axle >> Front Axle Hub >> Components

Front Axle Hub: Components

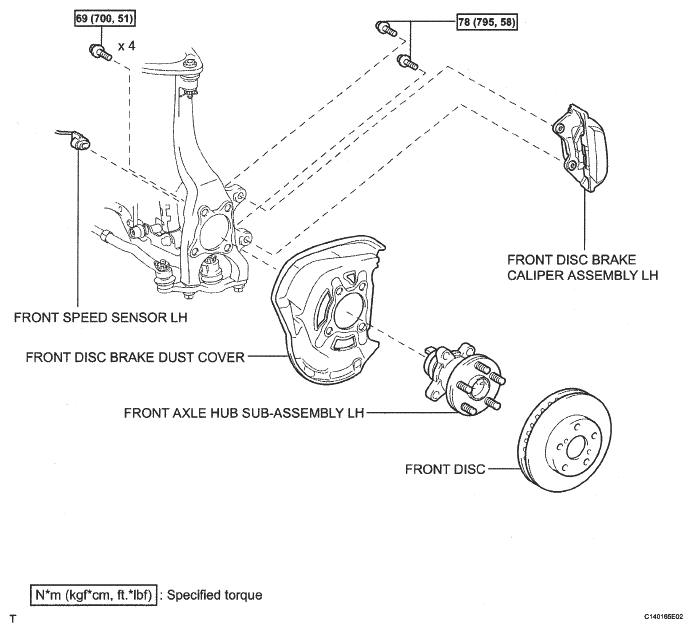

Fig 1: Front Axle Hub Replacement Components With Torque Specifications
G05305393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
