Outer Rear View Mirror: Components

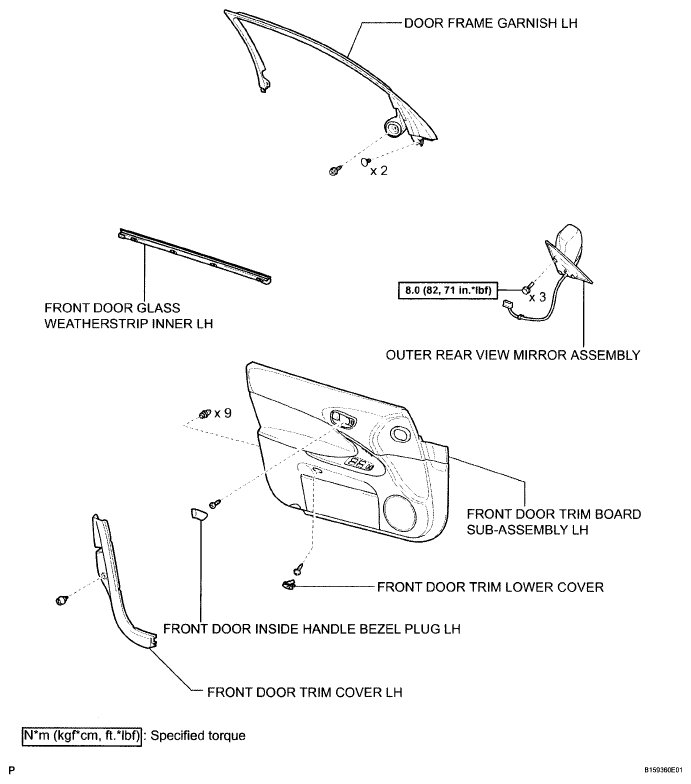

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications (1 Of 2)
G05811857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

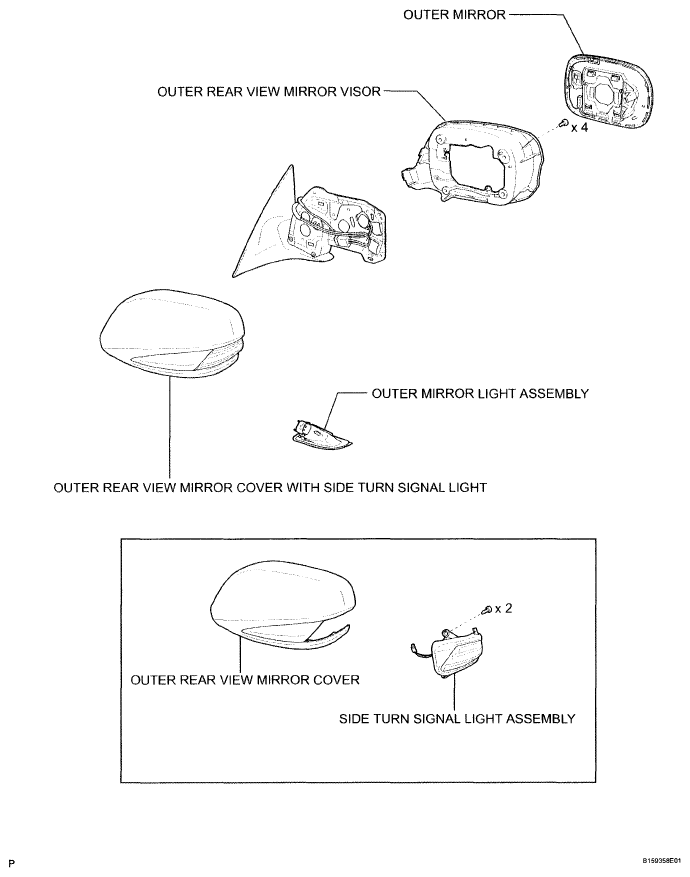

Fig 2: Outer Rear View Mirror Replacement Components With Torque Specifications (2 Of 2)
G05811858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
