Parts Location

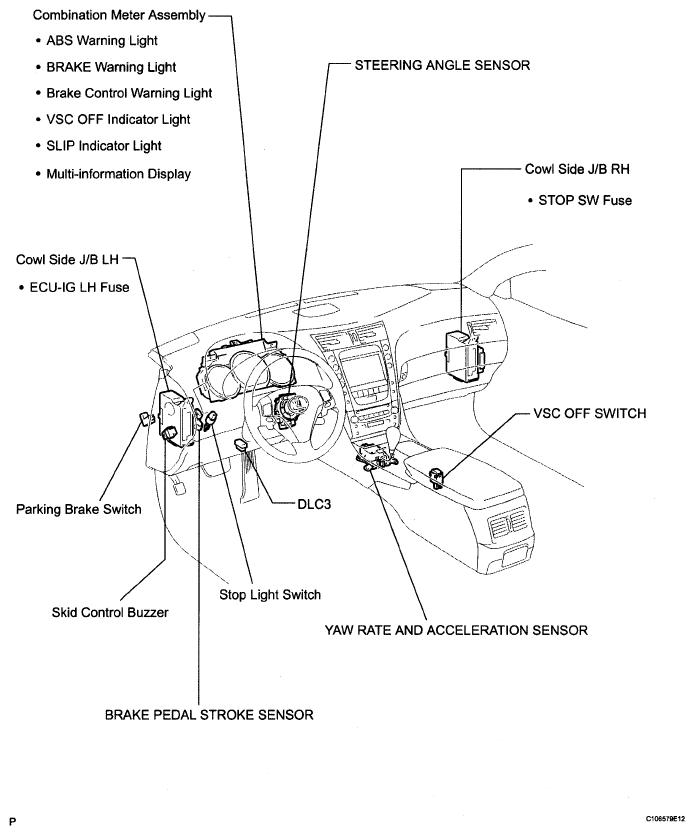

Fig 1: Electronically Controlled Brake System Parts Location (1 Of 2)
G05807095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

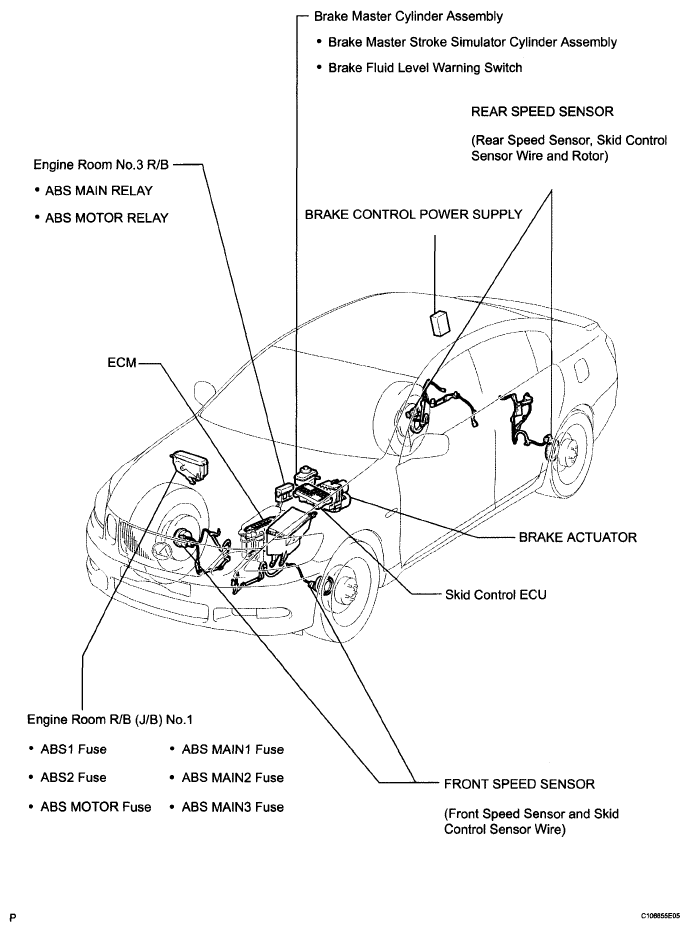

Fig 2: Electronically Controlled Brake System Parts Location (2 Of 2)
G05807096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
