Home >> Lexus >> 2008 >> GS 460 >> Repair and Diagnosis >> Suspension >> Front Suspension >> Axle >> Front Axle Hub >> Components

Front Axle Hub: Components

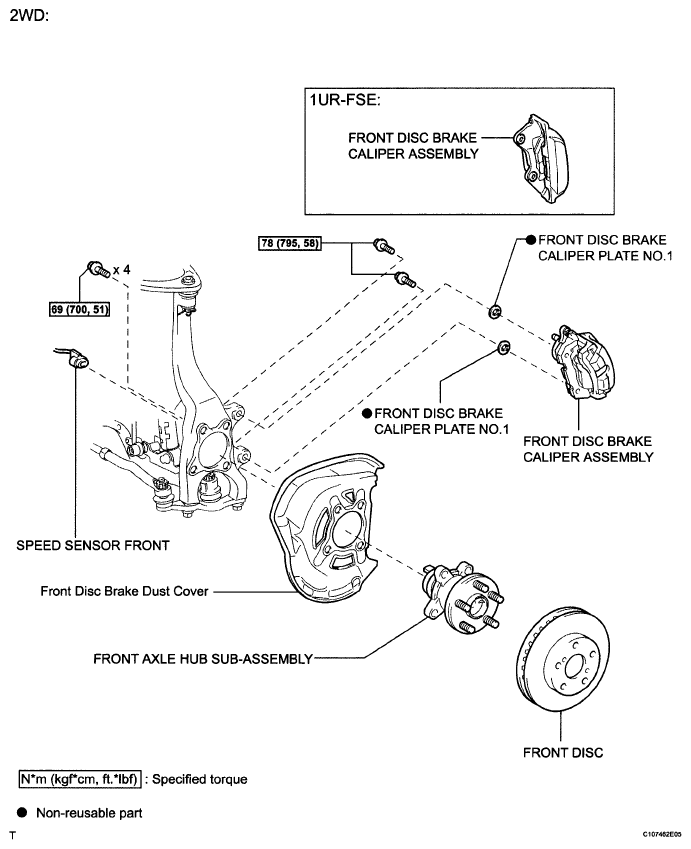

Fig 1: Front Axle Hub Replacement Components With Torque Specifications (1 Of 2)
G05809126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

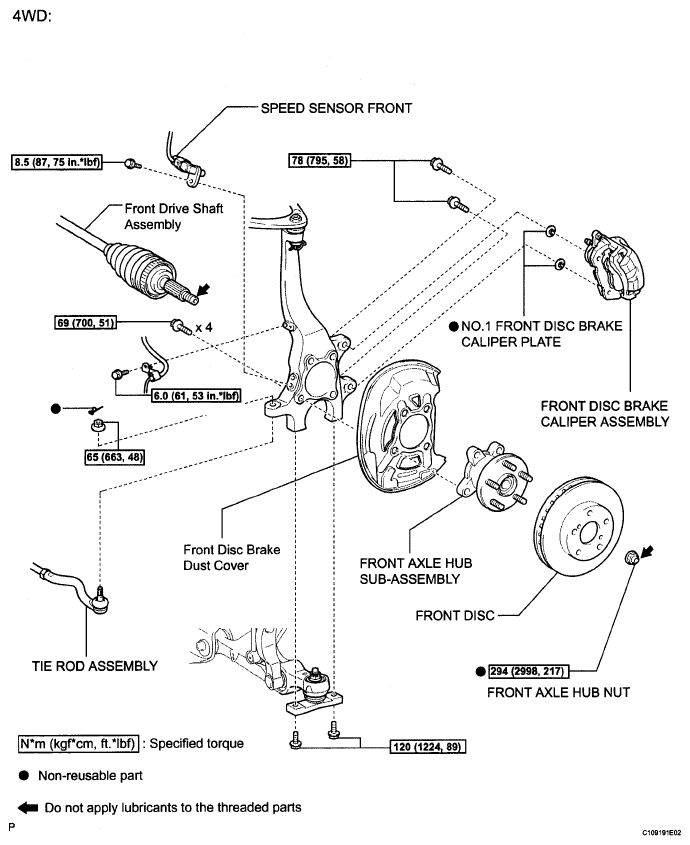

Fig 2: Front Axle Hub Replacement Components With Torque Specifications (2 Of 2)
G05809127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
