Home >> Lexus >> 2008 >> GS 460 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Park/Neutral Position Switch >> Components

Park/Neutral Position Switch: Components

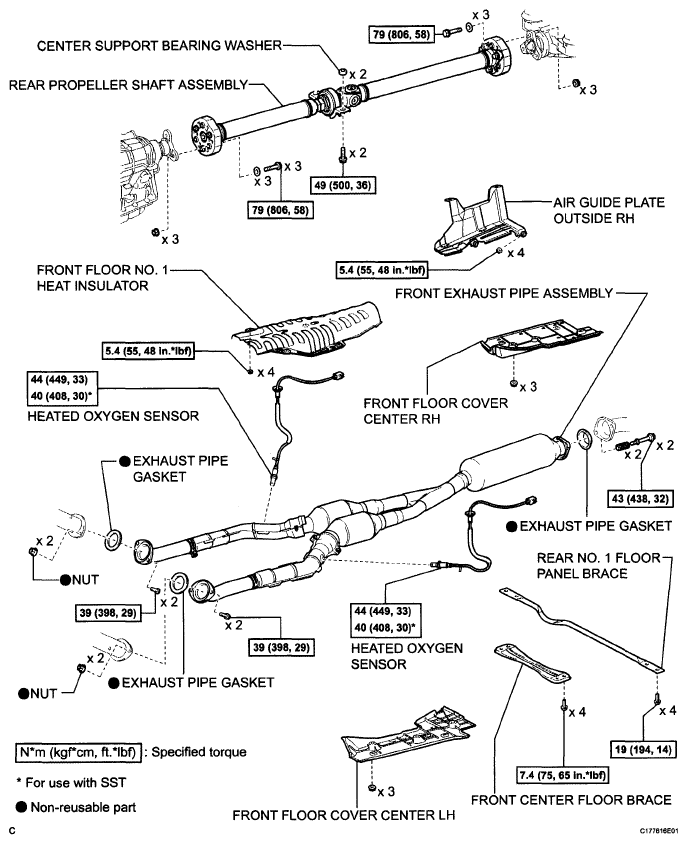

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G05806358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

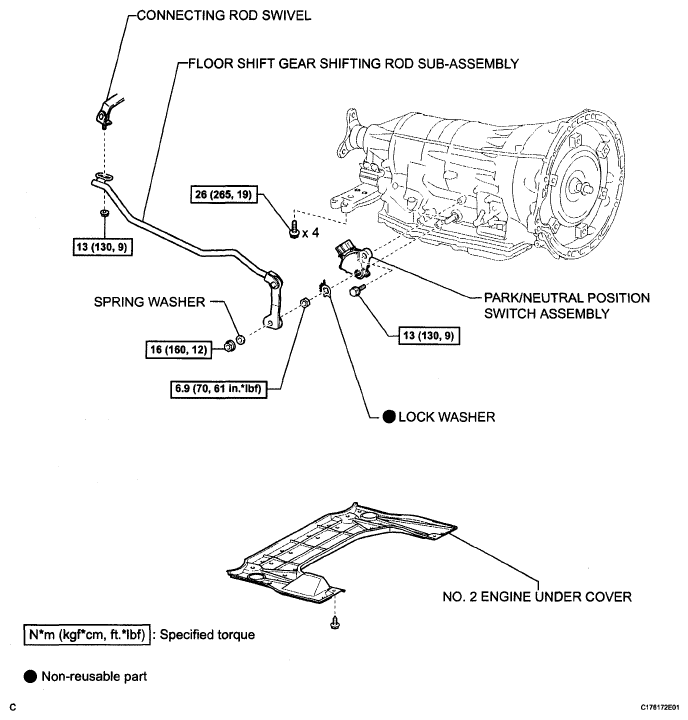

Fig 2: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G05806359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
