Parts Location

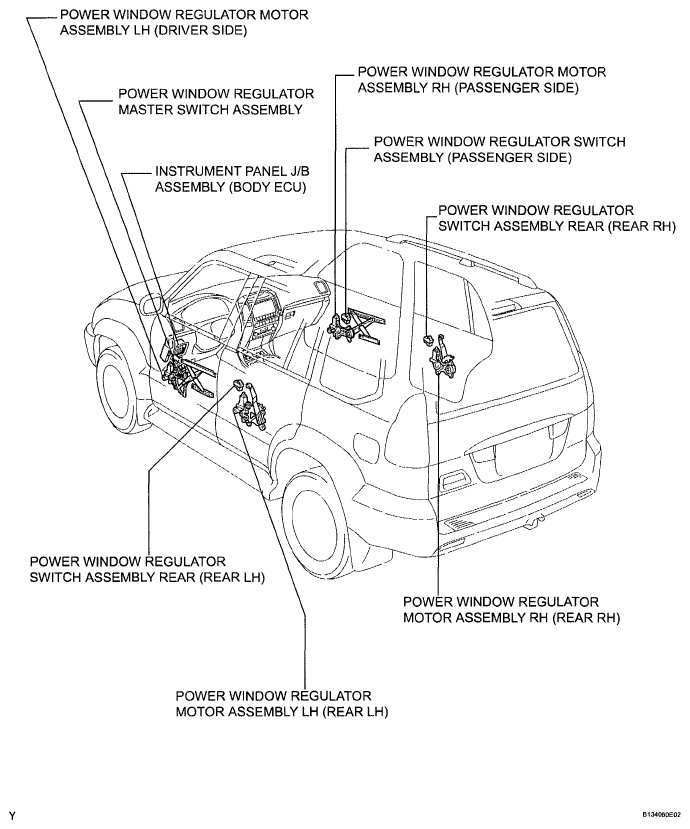

Fig 1: Identifying Power Window Control System Parts Location
G05846595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

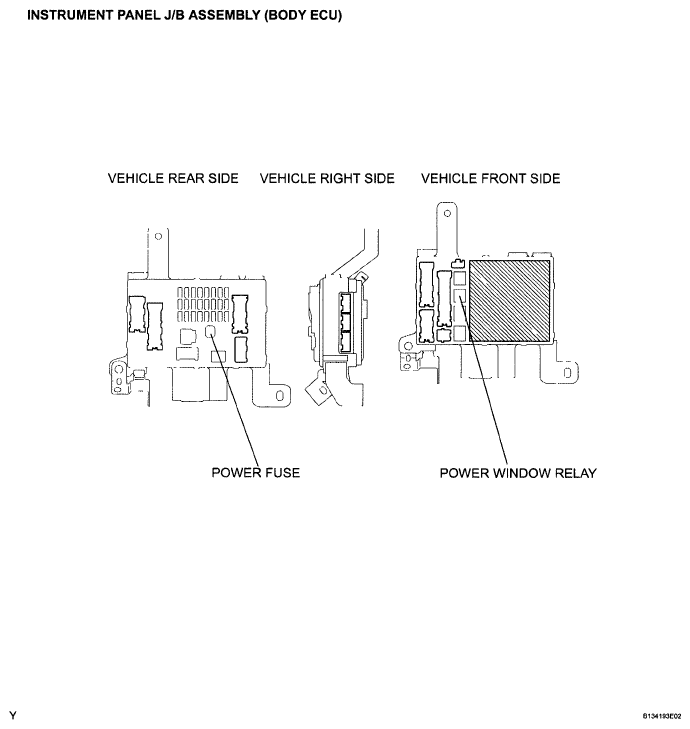

Fig 2: Identifying Instrument Panel J/B Assembly (Body ECU)
G05846596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
