Remote Up/Down Function does not Operate: Wiring Diagram

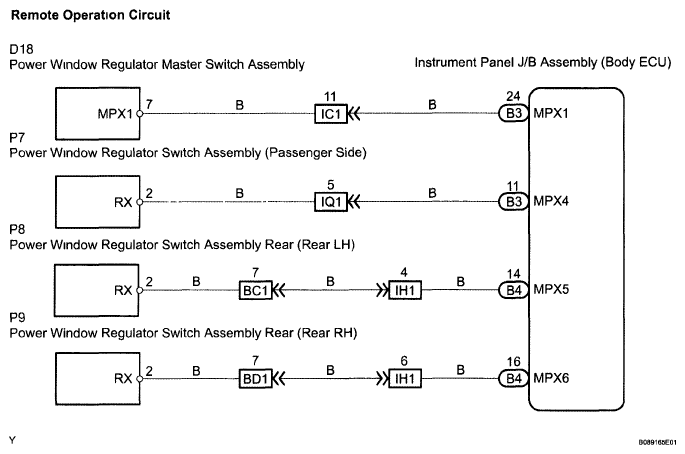

Fig 1: Remote Operation - Wiring Diagram

G05846603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
