Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Quarter Window Glass >> Components

Quarter Window Glass: Components

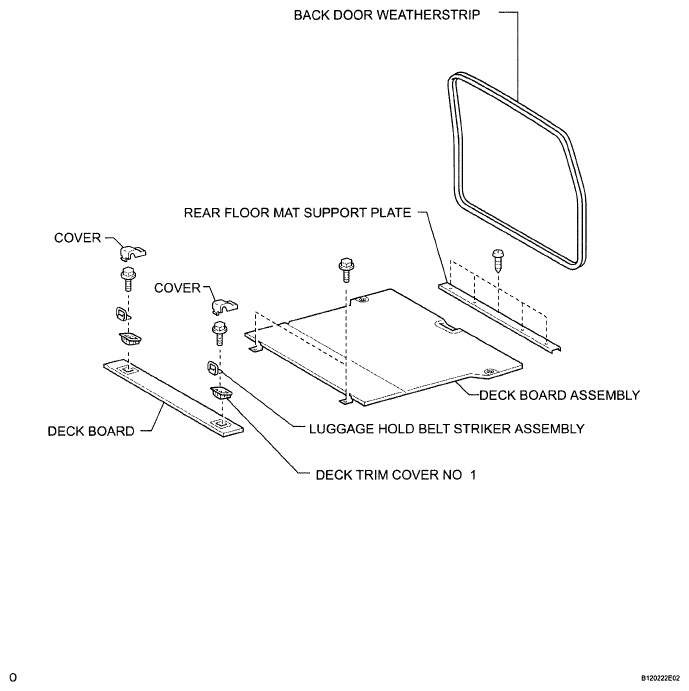

Fig 1: Identifying Deck Board Assembly Components
G05846692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

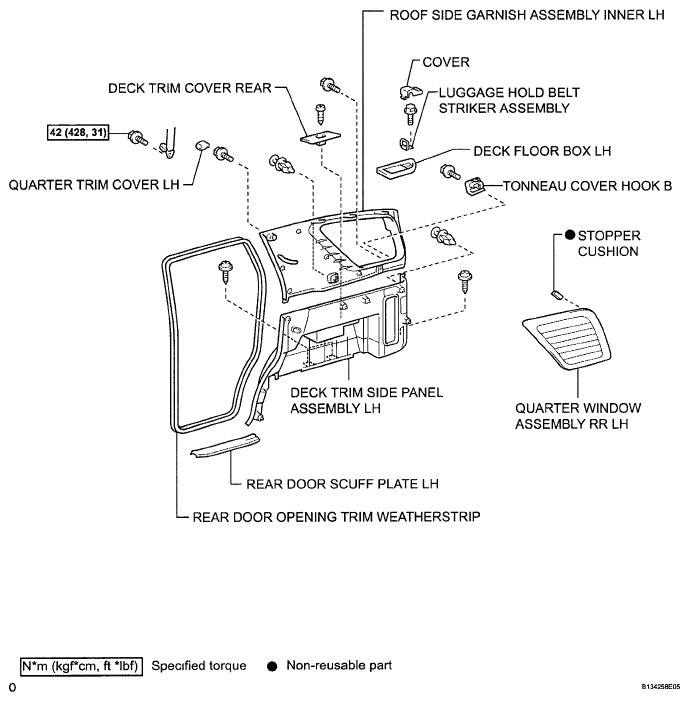

Fig 2: Quarter Window Glass Replacement Components With Torque Specifications
G05846693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
