Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Windshield Glass >> Components

Windshield Glass: Components

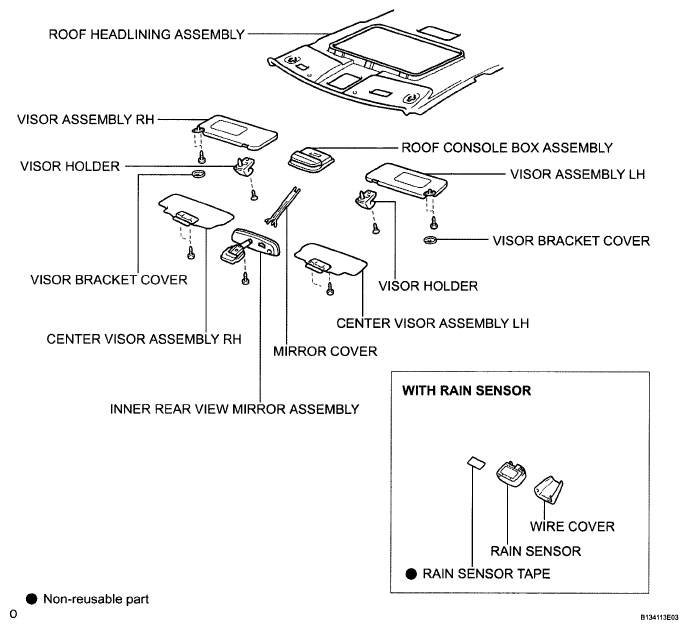

Fig 1: Identifying Roof Headlining And Visor Components
G05846654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

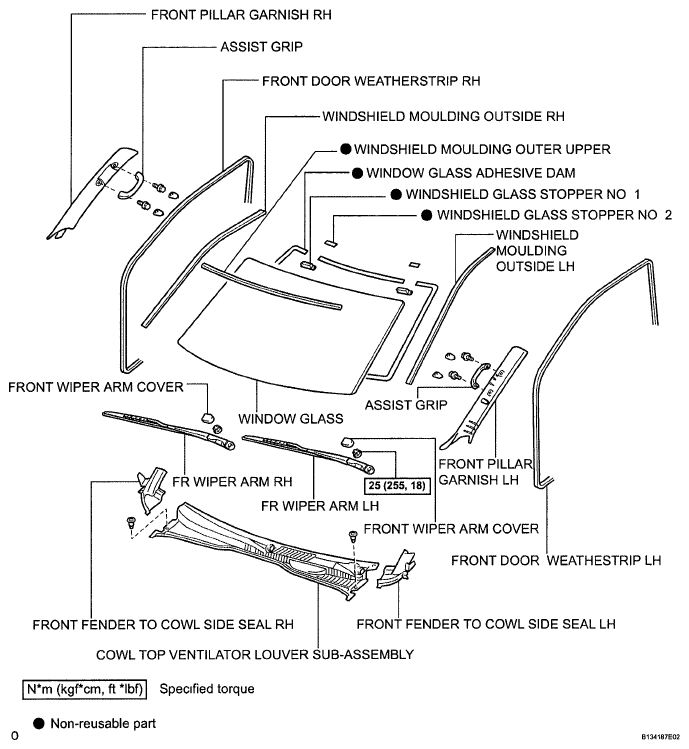

Fig 2: Identifying Windshield Glass Components
G05846655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
