Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Front Fog Light >> Notes

Front Fog Light: Notes

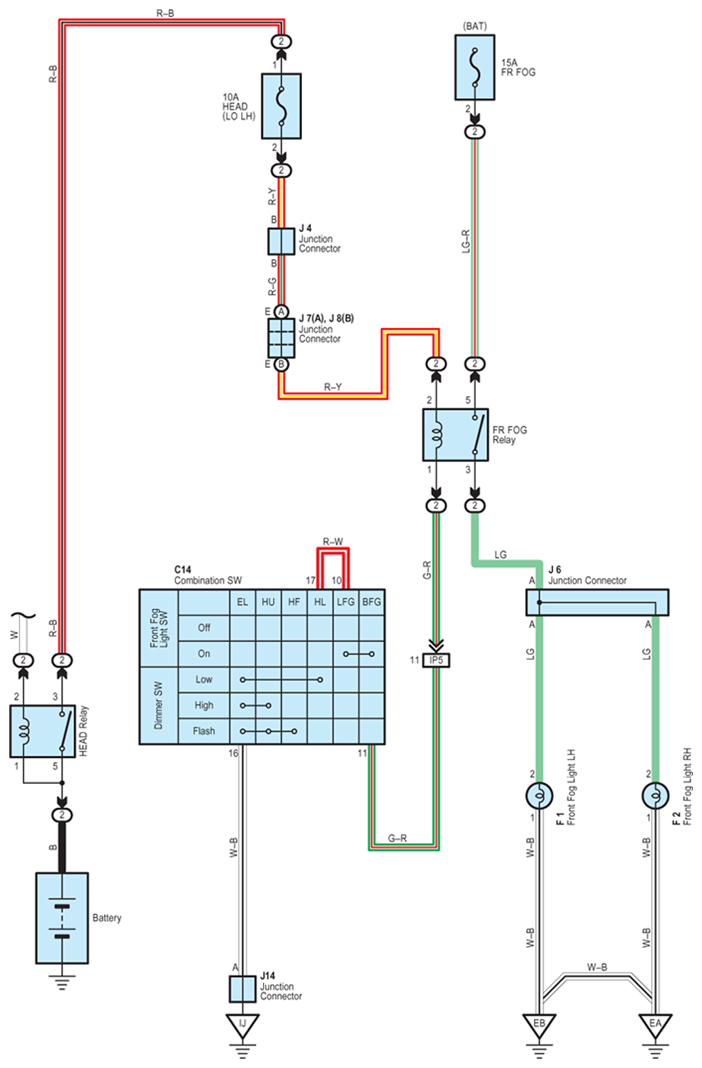

Fig 1: Front Fog Light - Circuit Diagram
G07613369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
