Pattern Select Switch Circuit: Wiring Diagram

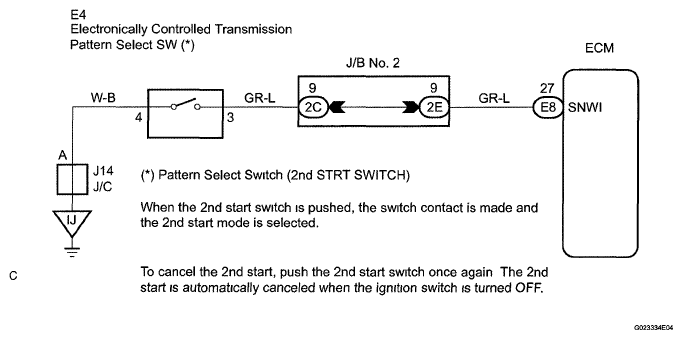

Fig 1: Pattern Select Switch - Wiring Diagram

G05844410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
