Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Shift Lever Assembly >> Components

Shift Lever Assembly: Components

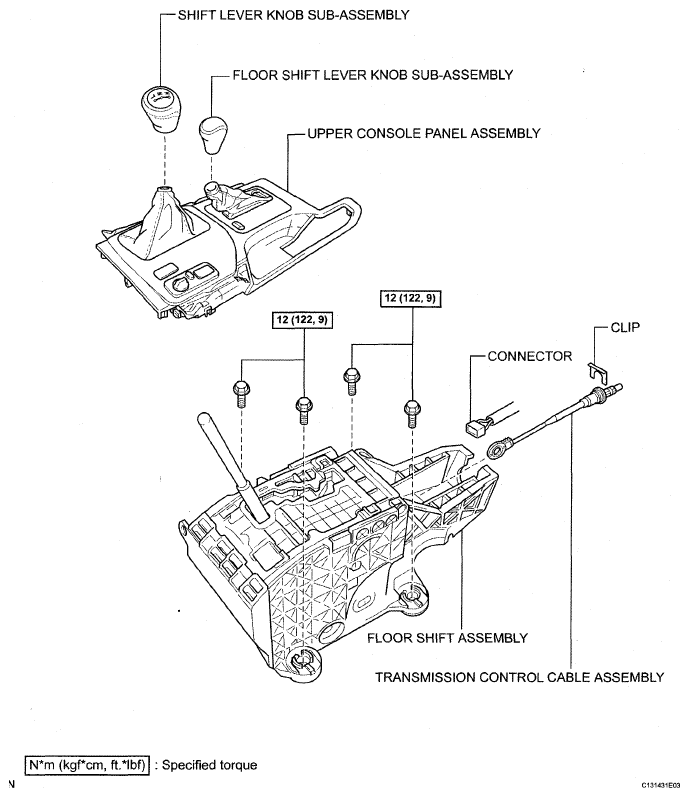

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05261341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

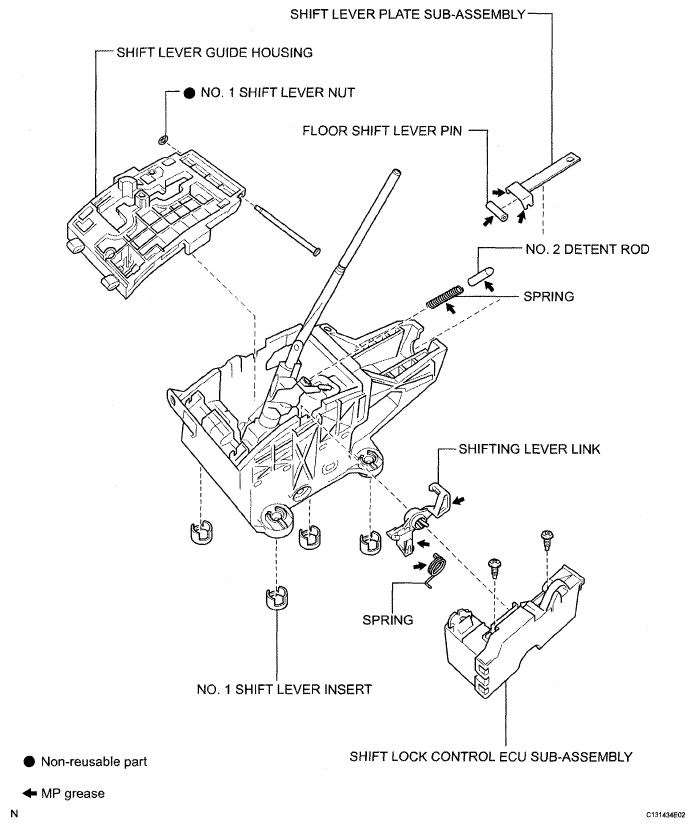

Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
G05261342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
