Speed Sensor: Installation

  1. INSTALL SPEED SENSOR
    1. Coat a new O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the connector.

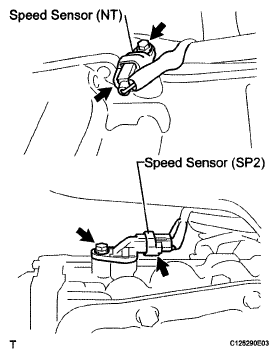

      Fig 1: Locating Speed Sensor Bolt
      G04963353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
