Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Valve Body Assembly >> Components

Valve Body Assembly: Components

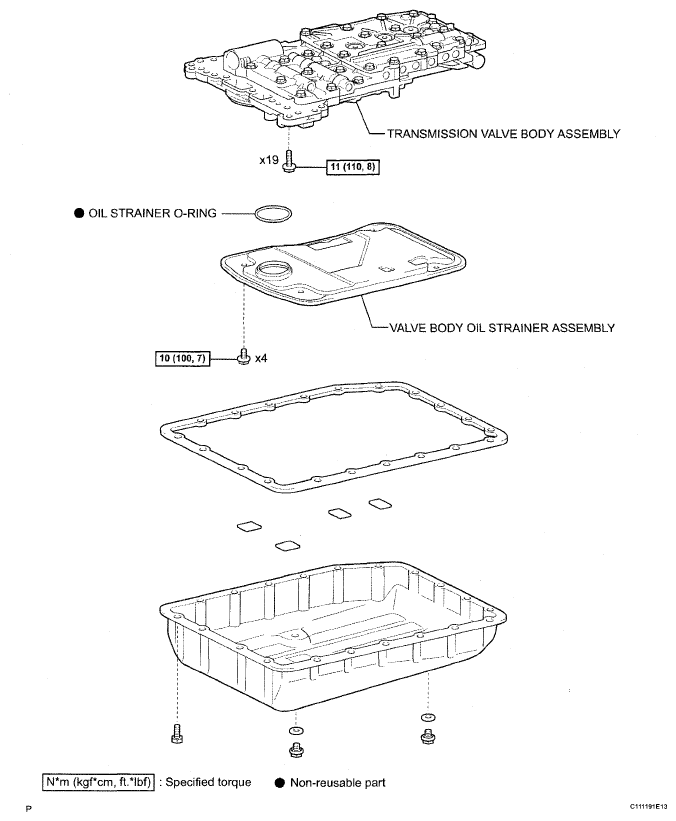

Fig 1: Valve Body Replacement Components With Torque Specifications

G05261324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
