Automatic Transmission Unit: Components

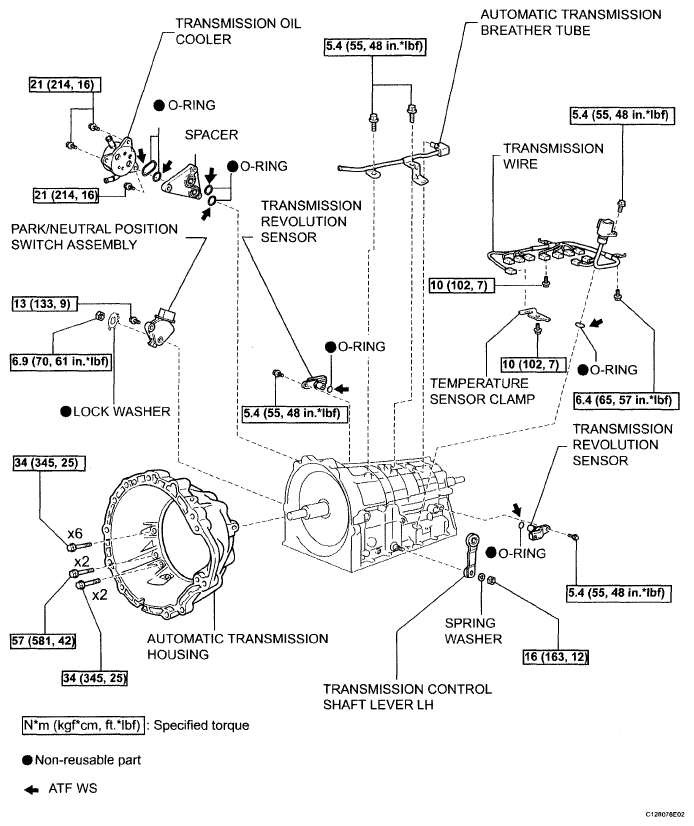

Fig 1: Automatic Transmission Unit Components And Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Automatic Transmission Unit Components And Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Automatic Transmission Unit Components And Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
