Home >> Lexus >> 2008 >> IS 250 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A760H Automatic Transaxle >> Speed Sensor >> Components

Speed Sensor: Components

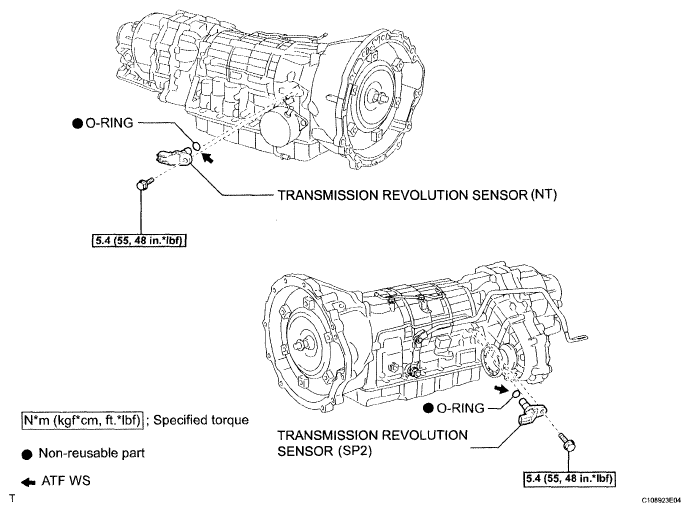

Fig 1: Speed Sensor Replacement Components With Torque Specifications
G05829665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
