Home >> Lexus >> 2008 >> IS 350 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Back Window Glass >> Components

Back Window Glass: Components

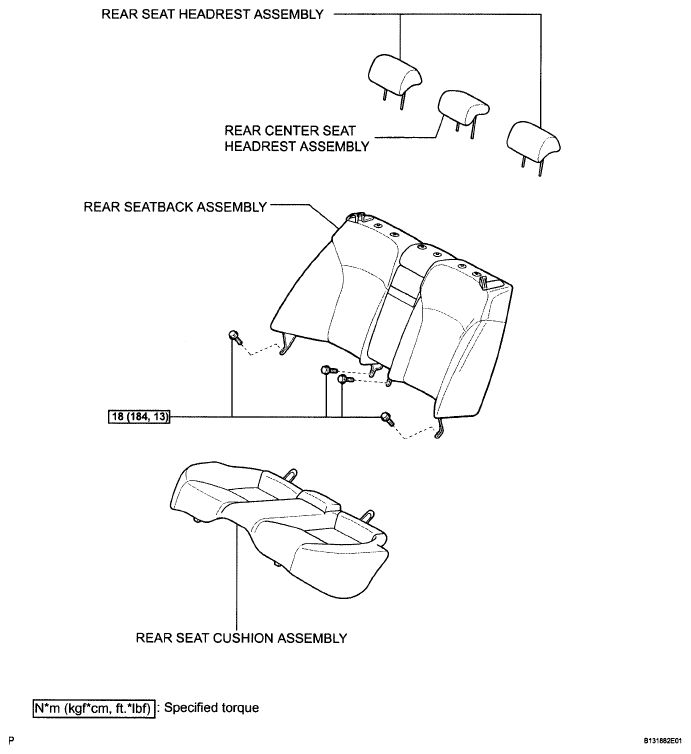

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specification (1 Of 3)
G05832888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

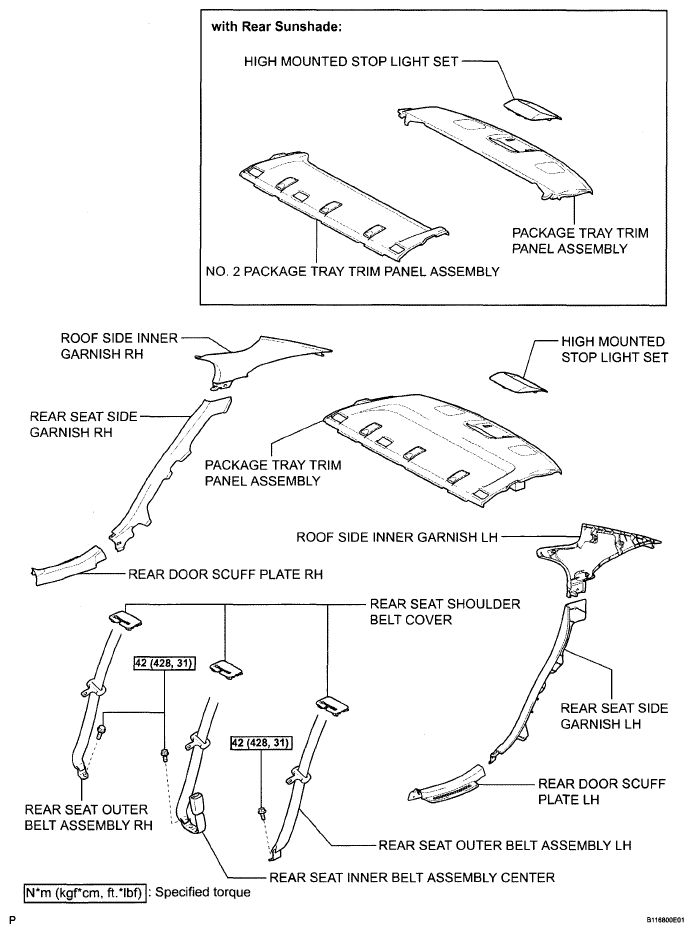

Fig 2: Identifying Back Window Glass Replacement Components With Torque Specification (2 Of 3)
G05832889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

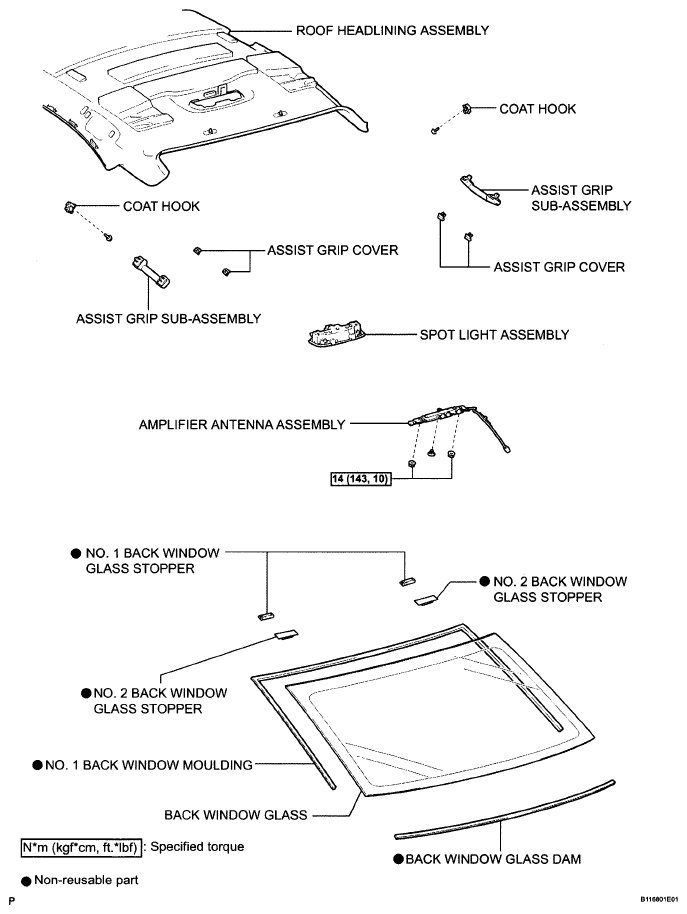

Fig 3: Back Window Glass With Torque Specification (3 Of 3)
G05832890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
