Windshield Glass: Components

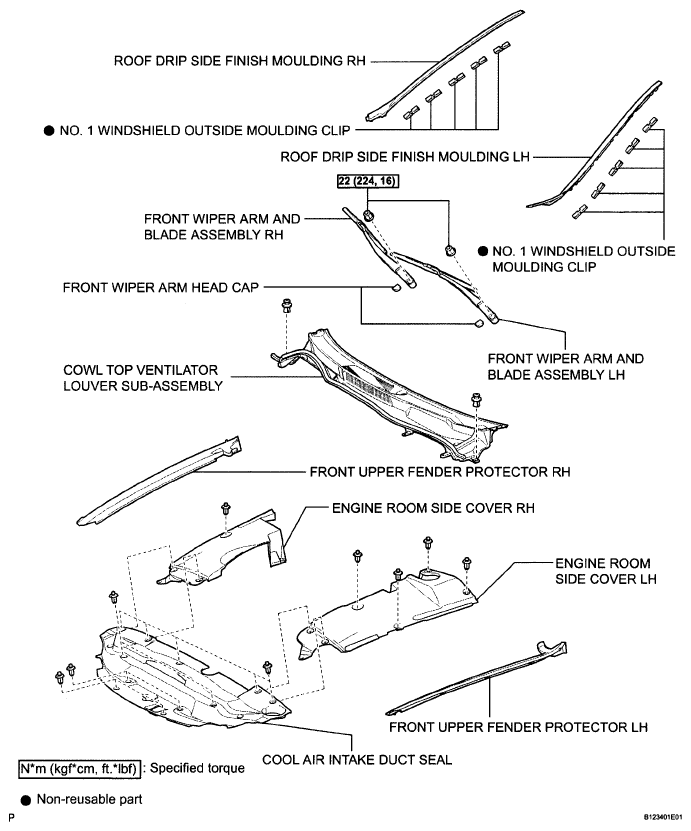

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specification (1 Of 3)
G05832870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

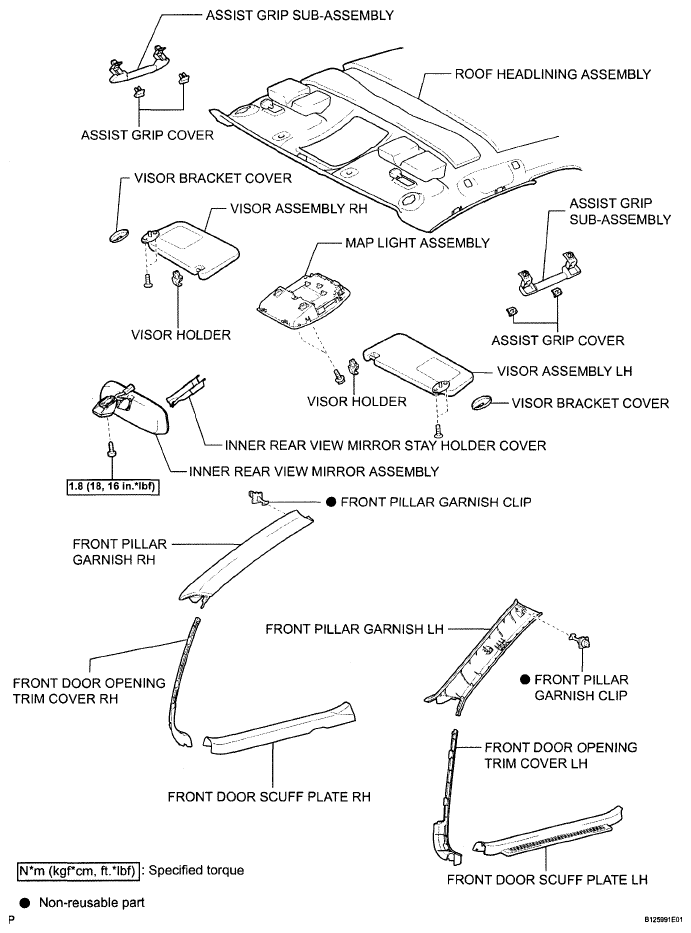

Fig 2: Identifying Windshield Glass Replacement Components With Torque Specification (2 Of 3)
G05832871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

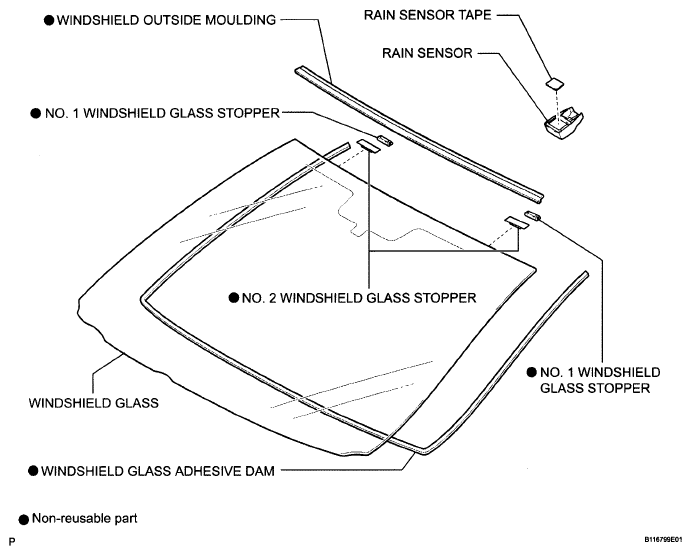

Fig 3: Identifying Windshield Glass Components (3 Of 3)
G05832872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
