Cooling Fan: Notes

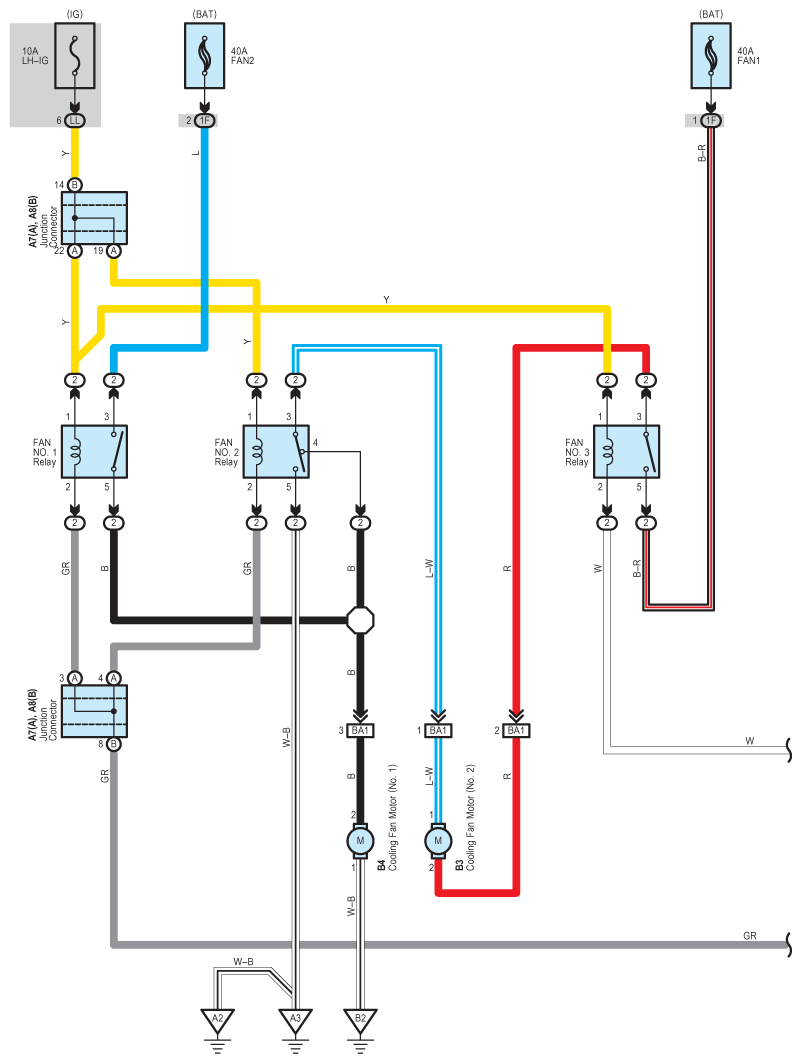

Fig 1: Cooling Fan - Circuit Diagram (1 Of 3)
G07591945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

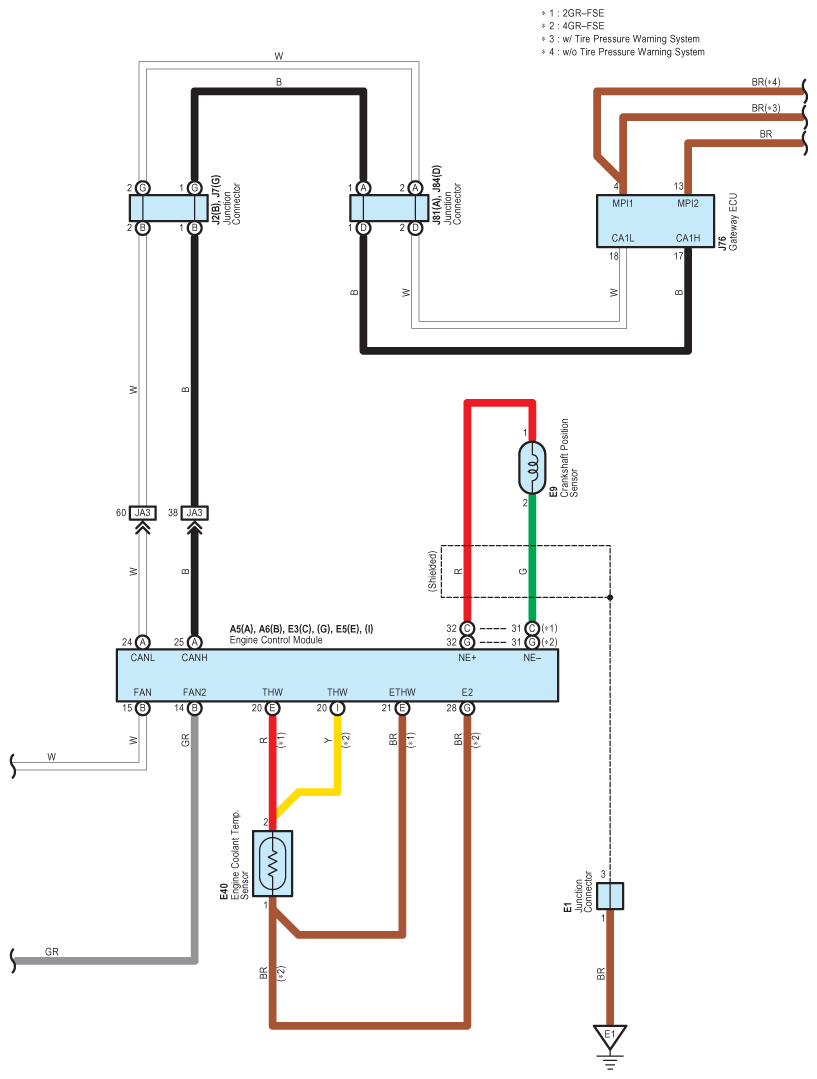

Fig 2: Cooling Fan - Circuit Diagram (2 Of 3)
G07591946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

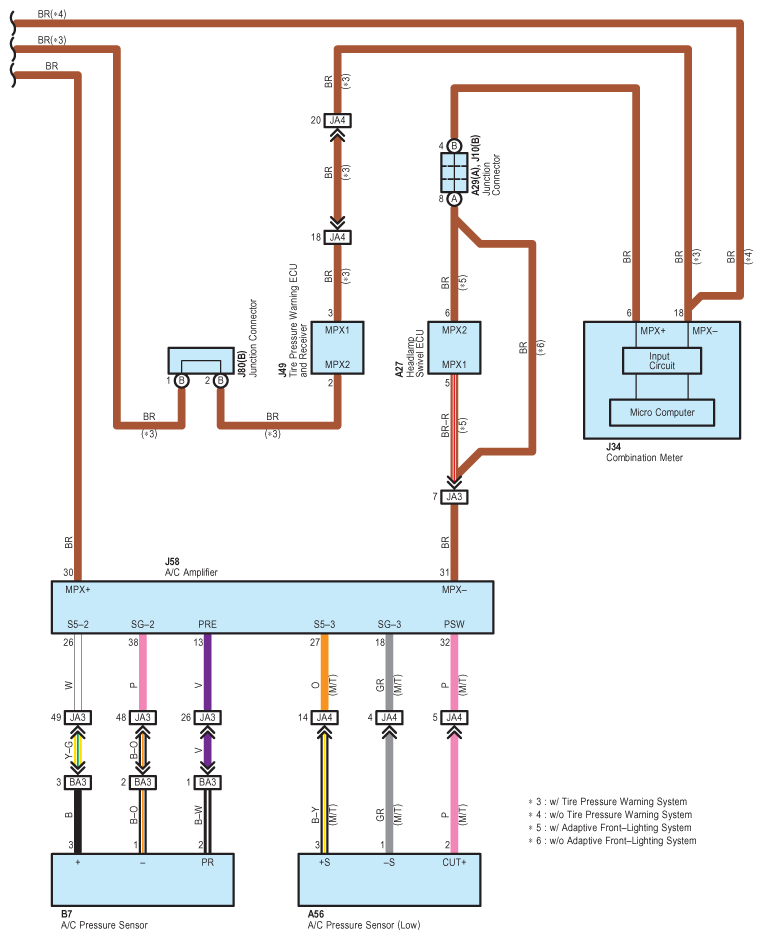

Fig 3: Cooling Fan - Circuit Diagram (3 Of 3)
G07591947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
