Ignition for 4GR-FSE: Notes

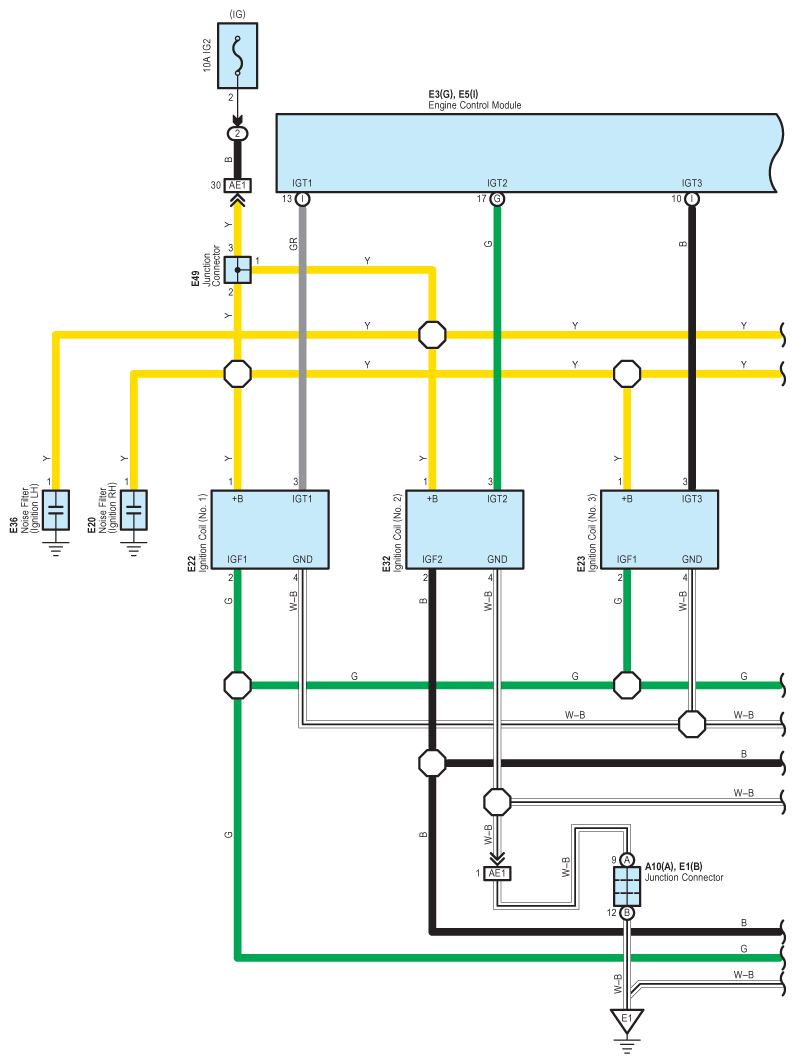

Fig 1: Ignition For 4GR-FSE - Circuit Diagram (1 Of 2)
G07591620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

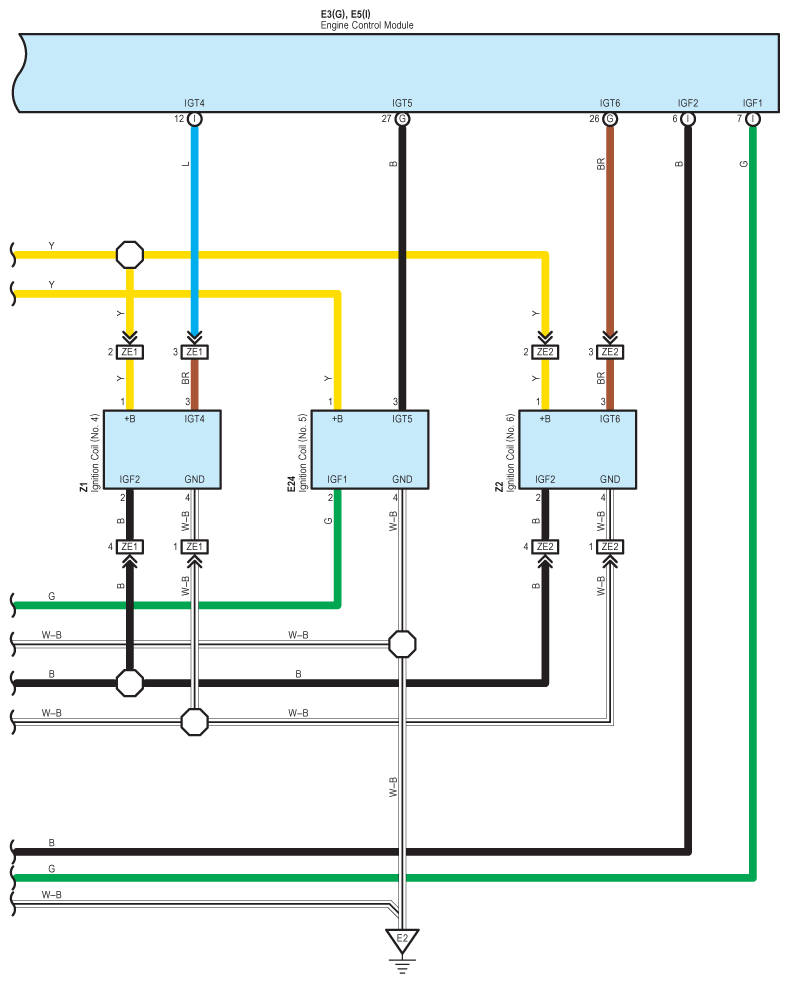

Fig 2: Ignition For 4GR-FSE - Circuit Diagram (2 Of 2)
G07591621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
