Rear Sunshade: Notes

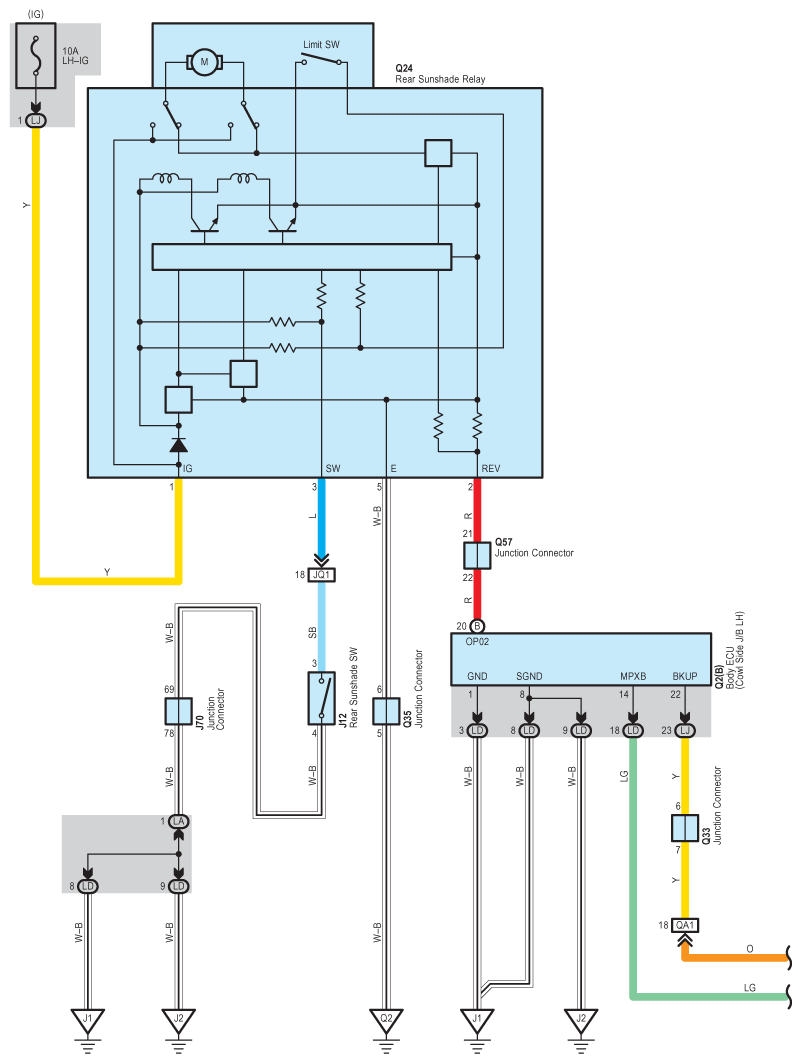

Fig 1: Rear Sunshade - Circuit Diagram (1 Of 2)
G07591876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

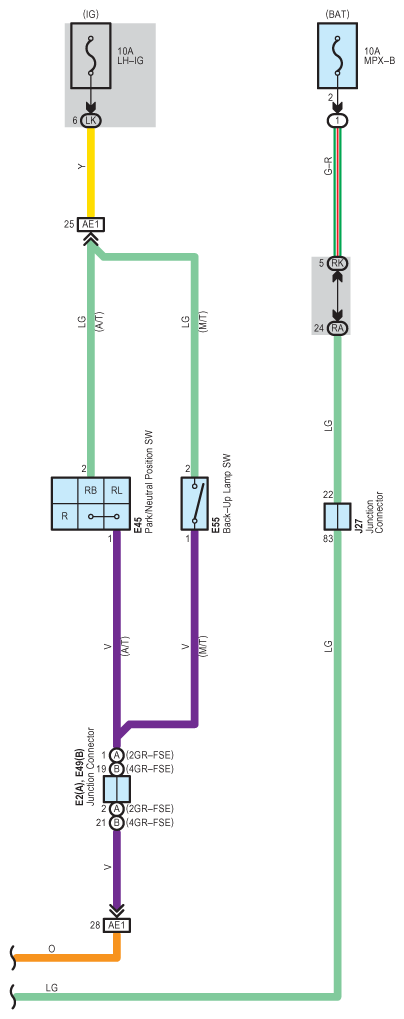

Fig 2: Rear Sunshade - Circuit Diagram (2 Of 2)
G07591877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
